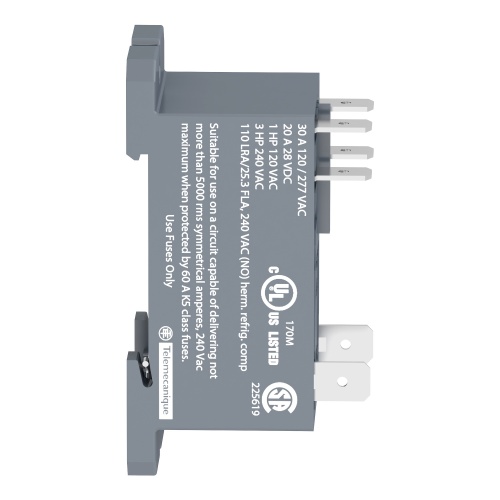

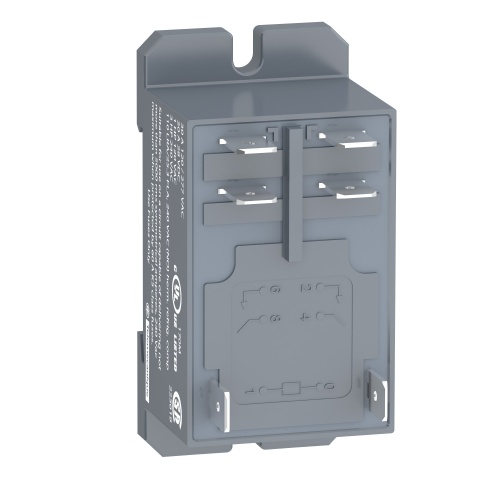

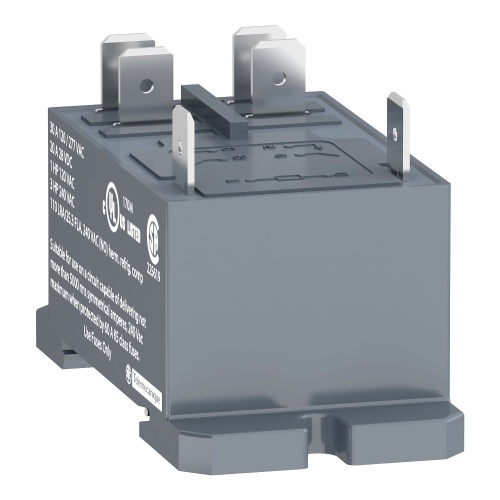

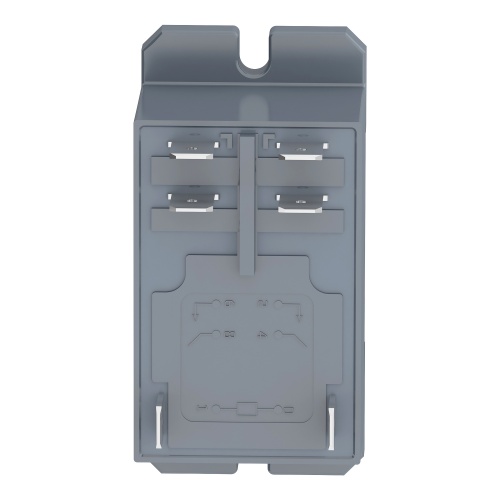

Schneider Electric RPF2AP7 power relay plug-in - Zelio RPF - 2 NO - 230 V AC - 30 A
Normally In Stock
Code: 95419
Schneider RPF2AP7 2 NO Power Flat Silver tin oxide Without lockable test button Panel, DIN rail 230 V AC 250 V IEC 25 A -40-131 °F (-40-55 °C relays side by side without a gap, 30 A -40-131 °F (-40-55 °C 13 mm gap between two relays 30 A 277 V AC NO UL, 20 A 28 V DC NO UL, 30 A 2 (MUST BUY IN PACKS OF 10)
Condition: New
Normally Stocked$16.69
Sale Price
$13.91
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
power relay plug-in - Zelio RPF - 2 NO - 230 V AC - 30 A
Specifications
Component
Relay Plug-In-Electromagnetic
Manufacturer
Schneider Electric
Relay Throws
Single Throw 2 Normally Open
Relay Load Voltage AC Rating
230 Volt
Coil Voltage Max
250 Volt
Relay Load Amperage
30 Amp @ 277 Volt
Relay Load Amperage
20 Amp @ 28 Volt
Relay Load Amperage
30 Amp @ 250 Volt
Relay Load Amperage
25 Amp @ 28 Volt
Coil Voltage Rating
220-277 Volt
Features
Help to reduce the size of enclosures
Provides economical solution for the implementation of many switching functions
Flexible design for space-saving
