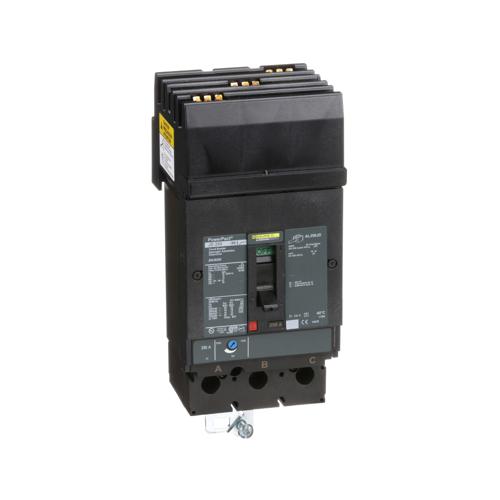

Schneider Electric JDA36250 PowerPact J-Frame breaker, I-Line, thermal-magnetic, 250 A, 3P, 14 kA at 600 VAC
Schneider JDA36250 Circuit breaker 250 A 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC ABC 80 % 3P I-Line CE, IEC, UL Listed, CSA, CCC PowerPact J D Thermal-magnetic 1250 A 2500 A 11.48 in (291.59 mm 4.48 in (113.79 mm 5.87 in (149.10 mm 104 °F (40 °C 3 600 V AC,
Normally In Stock! Order now!
Condition: New
CALL FOR LEAD TIME
Price: $5904.00
Sale Price:
$2873.19
Schneider JDA36250 Circuit breaker 250 A 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC ABC 80 % 3P I-Line CE, IEC, UL Listed, CSA, CCC PowerPact J D Thermal-magnetic 1250 A 2500 A 11.48 in (291.59 mm 4.48 in (113.79 mm 5.87 in (149.10 mm 104 °F (40 °C 3 600 V AC,
| Specifications | |
| Interrupt Code (Molded Case Breaker) | D Interrupt Rating |
| Poles (Molded Case Breaker) | Three Pole |
| Frame Type (Molded Case Breaker) | J Frame |
| Amperage (Molded Case Breaker) | 250 Amp |
| Maximum Voltage (Molded Case Breaker) | 600 VAC |
| Mounting (Molded Case Breaker) | I-Line |
| Maximum Voltage (Molded Case Breaker) | 250 VDC |
| Manufacturer | Schneider Electric |
| Manufacturer | Square D |
| Component | Molded Case Circuit Breaker |
| Interrupt Rating (Molded Case Breaker) | 20 kA 250 Volt |
| Interrupt Rating (Molded Case Breaker) | 18 kA 480 Volt |
| Interrupt Rating (Molded Case Breaker) | 25 kA 240 Volt |
| Interrupt Rating (Molded Case Breaker) | 14 kA 600 Volt |
