Code: 829000

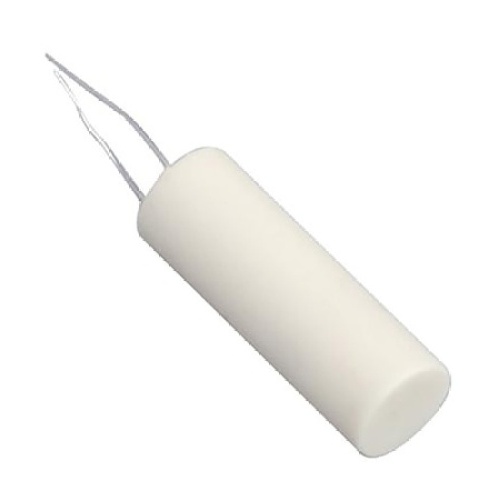

Omega 2PT100FR845 Platinum RTD Element
Normally In Stock
Omega 2PT100FR845 Platinum RTD Element
Condition: New
Usually ships Same Day or Next Day$73.97
Sale Price
$61.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Platinum RTD Element, Thin Film, Rugged, -70 °C to 500 °C (-94 °F to 932 °F), 2 x 100 Ω, Class B Accuracy per IEC751, 2 Wires, 4.5 mm (0.18 "), 0.31 ", 6 mm (0.24 "), GX Series, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Type
RTD
Component
Platinum RTD Element
Features
Designed for High Vibration Use
Rugged Cylindrical Element
Length: 8mm(0.31') or 13mm(.51')*. Diameters: 2.8mm(.11') or 4.5mm(.18')*
Ro= 100, 500, or 1000 Ω
AccuracyClass B
Accuracy DetailClass B per IEC60751
Air Velocity, Max1 m/s
Insulation Resistance> 10 MΩ
Insulation Resistance Note>10 MΩ @ 20°C
>1 MΩ @ 500°C
Lead MaterialPlatinum Clad Nickel Wire
Long Term StabilityMax R/0-drift 0.1% after 1000 h @ 500°C
Operating EnvironmentUnhoused for dry environments only
Process Temperature, Max500 °C
Process Temperature, Min-70 °C
Sensor Height8 mm
Shock Resistance100 g Acceleration with 8 ms Half Sine Wave
Temperature Coefficient3850 ppm/K
Temperature Sensor TypeRTD
Vibration Resistance10 to 2000 Hz sweep rate, acceleration 40g
Water Velocity, Max0.4 m/s
Wire Length6 mm
