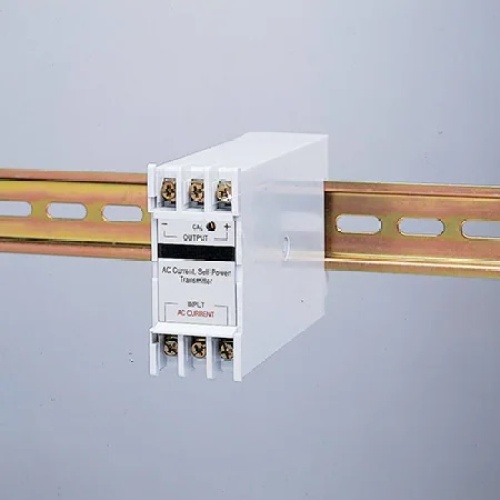

Omega DRA-ACT-SV-4 DIN Rail Signal Conditioner
Normally In Stock
Code: 804352
Omega DRA-ACT-SV-4 DIN Rail Signal Conditioner
Condition: New
Usually ships Same Day or Next Day$288.85
Sale Price
$240.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Omega DRA-ACT-SV-4 DIN Rail Signal Conditioner
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Component
DIN Rail Signal Conditioner
Features
DRA-ACT-SI Series AC Current Input
DRA-ACT-SV Series AC Voltage Input
Self-Powered
Isolated
Accuracy± 0.1 %
Accuracy Detail±0.1% (for 5 to 120% of span) typical
±0.15% max
CMRR122 dB typical
117 dB min
Frequency Accuracy± 0.02%/Hz
Height114 mm
Isolation4000 Vrms/ 1min
Lead Compensation Error< ±0.02% for full load change
Length73 mm
Linearity<±0.1%
Linearity Note< ±0.1% (for 5 to 120% of span) typical
±0.15% max
Loop ResistanceLoop Impedance: Rmax (Ω) = 16/0.02 = 800 Ω max @ 20 mA
MaterialsPolycarbonate
MountingDIN Rail 35 mm Standard or Wall Mount
Number of Inputs1
Operating Temperature, Max70 °C
Operating Temperature, Min-20 °C
Output Ripple< ± 0.1% of span
Output SignalCurrent
Output ValueProcess
Relative Humidity5 to 95% RH, noncondensing
Response Time< 240 msec (10 to 90%)
Storage Temperature, Max90 °C
Storage Temperature, Min-40 °C
Supply Power Effects40 to 400 Hz
Supply Power TypeLoop Powered
Temperature Stability<0.01%/°C
Weight300 g
Width32.5 mm
