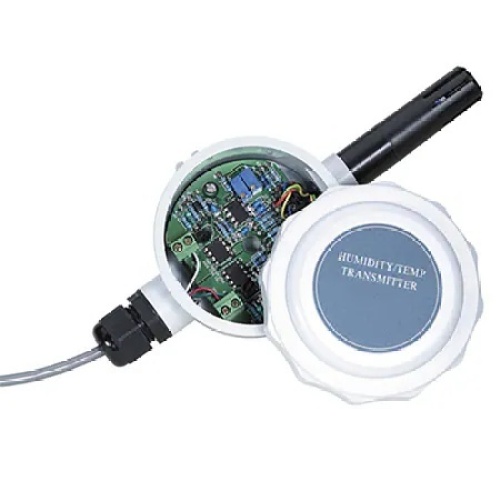

Omega HX302AV Temperature and Humidity transmitter
Normally In Stock
Code: 801714
Omega HX302AV Temperature and Humidity transmitter
Condition: New
Usually ships Same Day or Next Day$439.63
Sale Price
$366.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Relative Humidity Transmitter, 0 % to 100 % @ 0 °C to 50 °C (32 °F to 122 °F), 12 Vdc to 40 Vdc, 0 Vdc to 1 Vdc, Wall Mount, HX300A Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Temperature And Humidity Transmitter
Features
Fast, Stable and Accurate
Watertight Enclosure
Compact, Easy to Use
Excellent Long-Term Stability
Accuracy±2.5 % RH, ±0.3°C
Electrical ConnectionCable Gland for 5 to 10 mm Wire with Screw Terminal block
Enclosure RatingsIP65
Long Term StabilityBetter than 1% RH per year (typical)
Materials, WettedABS
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Response Time15 sec
Sensor MaterialSintered filter
Supply Power TypeDC
Supply Voltage12 to 40 Vdc
Temperature Compensation0.008% RH/°C (effect @ 05 RH)
Weight150 g
