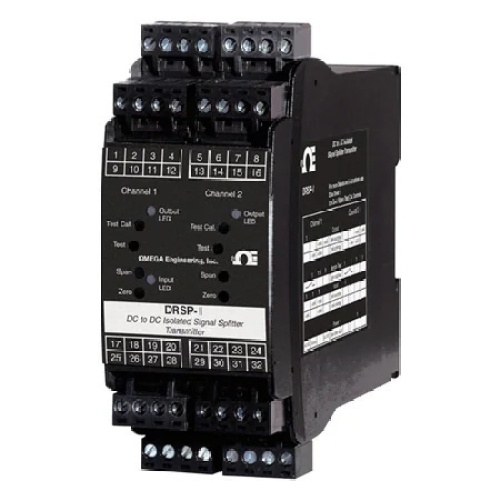

Omega DRSP-I 60-250VAC OR 85-300VDC SPLITTR
Normally In Stock
Code: 790166
Omega DRSP-I 60-250VAC OR 85-300VDC SPLITTR
Condition: New
Usually ships Same Day or Next Day$1015.22
Sale Price
$846.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, DC Current, AC Supply, 4 mA to 20 mA I/P, Process I/P & Splitter O/P Class, DRSP-I Series, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Manufacturer
Omega Engineering
Conditioner Supply Voltage
60-265 Vac
Features
One 4 to 20 mA Input to Two 4 to 20 mA Outputs with Full Isolation
Zero and Span Adjustments for Each Output
Full 1200 V Input/Output/ Power Isolation
Input/Output Loop Status LEDs
CMRR120 dB minimum
Current Measurement Range4 to 20 mA
Electrical ConnectionScrew Terminal
Electrical Output4 to 20 mA
Enclosure RatingsIP40
Height117 mm
Impedance Input50 Ω typical
Input Range NoteInput Loop Power Supply:15 Vdc ±10%, regulated, 25 mA
May be selectively wired for sinking or sourcing mA input
Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status
One for input, one for each output.
IsolationIsolation (Full 4-Way Isolation):input 1, output 1, output 2, power
1200 VRMS minimum
LED IndicatorsLoop Status LEDs: Variable brightness LEDs indicate I/O loop level and status
One for input, one for each output
Length122 mm
LinearityOutput Linearity: ±0.1% of span
MountingDIN Rail 35 mm Standard
Number of Inputs1
Operating Temperature, Max60 °C
Operating Temperature, Min-10 °C
Output Detail(Output 1 and Output 2): 4 to 20 mA
20V compliance, 1000 Ω at 20 mA
Output Zero and Span: Multi-turn zero and span potentiometers for each output channel to compensate for load and lead variations
±15% of span adjustment range typical
Output Loop Power Supplies: One for each output channel
20 Vdc nominal, regulated, 25 mA may be selectively wired for sinking or sourcing mA output.
Output Functional Test: Front buttons set each output to test level when pressed
Each test level potentiometer adjustable 0 to 100% of span
Output RippleOutput Ripple and Noise: <10 mVRMS
Output SignalCurrent
Output ValueSplitter
Response Time70 ms typical
Stability±0.04% of span per °C
Width45 mm
Wire Gauge14 AWG
