Code: 783885

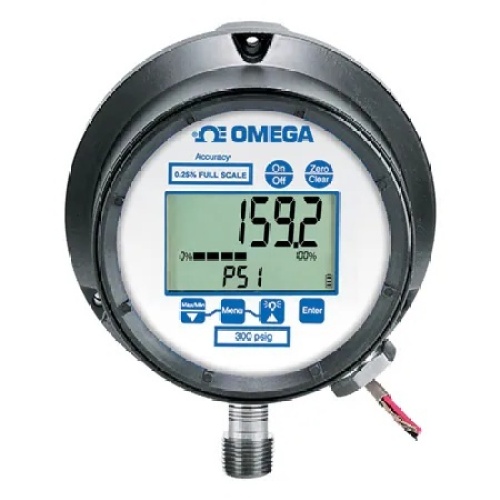

Omega DPG9230-60 DC PWR3"CASE,BACKLITE 60#
Normally In Stock
Omega DPG9230-60 DC PWR3"CASE,BACKLITE 60#
Condition: New
Usually ships Same Day or Next Day$1619.12
Sale Price
$1349.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Digital Pressure Gauge, Industrial, Gauge, 0 psi to 60 psi, ± 0.25 %, 1/4 " NPT Male, 5 Digit, DC Powered, 3 " Case Backlit Display, DPG9000 Series, Each
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
Manufacturer
Omega Engineering
(Instrument-Sensor) Span
0 To 60 Psi
Component
Single Pressure Digital Gauge
Features
A Multi-Functional Digital Gauge with Optional 4 to 20 mA Output and (1) or (2) SPDT Switches
± 0.25% of Span Terminal Point Accuracy
IP65 (NEMA 4) Weatherproof Case
3' Stainless Steel Case or 4 1/2' Fiberglass Reinforced Thermoplastic Case
Accuracy Class0.1% to 0.25%
Accuracy Detail0.25% Full Scale, terminal point
Battery life1000 hr
Connection LocationLower, Left, Right, Upper
Display TypeLCD
Display Type NoteType: LCD Display
Digits: Five (5)
Character Height: 3˝ .60˝, 41 ⁄2˝ .88˝
Backlite: Optional
Bar Graph: Yes
Battery Life: 3˝ >1000 hrs., 41 ⁄2˝ >3600 hrs.
Agency Approvals: CE, FM* (Intrinsically Safe Class1, Div 1), CSA and CENELEC *FM is not available with the following: 41 ⁄2˝ polypropylene case, SPDT switch option(s) (XU1, U2) or Backlite (XBL) option).
Keypad FunctionsOn/Off: Manually turns unit on and off (auto off options in menu)
Zero/Clear: Zeros display or clears min. and max. values when displayed
Min/Max (down) Stores min and max values, arrow key allows for Arrow Key: scrolling thru menu items.
Menu Key: Provides access to menu options.
Backlite Arrow Key: Manually turns backlite on and off (auto off options in Arrow Key: menu), arrow key allows for five menu options. (up)arrow key allows for scrolling thru menu options.
Enter: Selects items in the menu.
Menu ModeEngineering Units: 10 units of measurement are available
psi, In. H2O (with three temp. options: 20°C, 60°F, 4°C*), Ft. H2O, mPa, mBar, kPa, kg/cm2 , Bar, inHg and mmHg.
Configuration Mode: Allows for changes to default settings of gauge Allows for changes to default settings of gauge.
Bar Graph: Allows for adjustment of bargraph and 4-20 (optional feature).
Auto Off (Off): Allows for changes to auto off of gauge, five options: Never, 2 min., 5 min., 15 min., 30 min.
Update Rate: Four options: 100 ms, 200 ms, 500 ms, 1 sec
Dampening: Six options: None, average, 2, 4, 6, 8 times per 100ms.
Backlite: Five options: Never, 10 sec., 30 sec., 1 min., 5 min.
Field Recalibration:Allows for recalibration of zero, midscale and span (password protected)
Number of Digits5
Operating Temperature, Max140 °F
Operating Temperature, Min14 °F
Pressure Accuracy± 0.25 %
Process Connection Size1/4 in
Process Connection TypeNPT Male
Storage Temperature, Max158 °F
Storage Temperature, Min-4 °F
Supply Power Note12-36 Vdc, 2VA maxBattery Note:
Supply Voltage12 to 36 Vdc
