Code: 783685

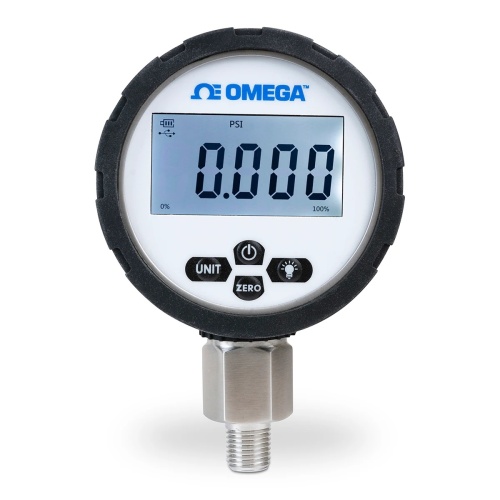

Omega DPG280-500A 500 psi Absolute DATA LOGGING DPG
Normally In Stock
Omega DPG280-500A 500 psi Absolute DATA LOGGING DPG
Condition: New
Usually ships Same Day or Next Day$1725.59
Sale Price
$1437.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Digital Pressure Gauge, Advanced, Data Logging, Absolute, 0 psi to 500 psi, ± 0.25 %, 1/4 " NPT Male, 5 Digit, Battery Powered, Data Recording, DPG280 Series, Each
Specifications
(Instrument-Sensor) Measurement Accuracy
0.20%
Manufacturer
Omega Engineering
(Instrument-Sensor) Span
0 To 500 Psi
Component
Single Pressure Digital Gauge
Features
Log up to 10,000 data points
USB output and software included for easy data retrieval
Visual bar display of pressure usage of full scale
Large display with bright backlight for high visibility
Battery Size and TypeAlkaline AAA
Data RetentionEEPROM
Display Type4 Digit LCD
Electrical OutputUSB
EMC StandardAnti-EMI Design, EN61326
Enclosure Material304 Stainless Steel
Height125 mm
Materials, Wetted304 Stainless Steel
Media CompatibilityAlcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Number of Batteries2
Number of Digits5
Operating Temperature, Max70 °C
Operating Temperature, Min-20 °C
Outer Diameter80 mm
Output SignalDigital
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max60 °C
Process Temperature, Min0 °C
Proof Pressure120% Full Scale
Sample/Display Rate10,000 points per 3 times/second
Sample Display Rate NoteUp to 10,000 points per 3 times/second
StabilityLong-Term Stability: 0.25 % Fs/year
Supply Power TypeBattery
Width46 mm
