Code: 779010

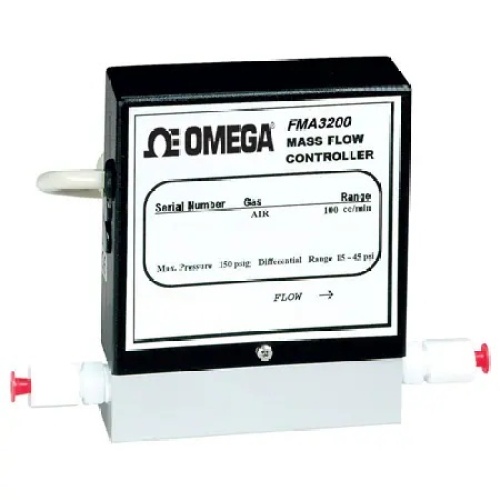

Omega FMA3106 GAS SENSOR, 0-1000 SCCM CE
Normally In Stock
Omega FMA3106 GAS SENSOR, 0-1000 SCCM CE
Condition: New
Usually ships Same Day or Next Day$907.38
Sale Price
$756.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mass Flow Meter, Economical, Gas, 100 SCCM to 1000 SCCM, 150 psi, 1/8 " Compression, 0 Vdc to 5 Vdc, 40 °C (104 °F), ± 1.5 %, 300 SS, Al, Acetal, FKM, FMA3100 Series, Each
Specifications
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) IP Protection
IP10
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Span
0 To 150 Psi
(Instrument-Sensor) Supply Voltage
12-15 VDC
Features
For Flowrates Up To 10,000 mL/Min
0-5 Vdc Linear Output
Cost Effective
Accuracy± 1.5 %
Additional Features 1Requires 20-micron filter
Electrical Output0 to 5 V
Enclosure RatingsIP10
Height3.5 in
Leak Rate Under Vacuumless than 10^⁻4 cc He/s
Length1.87 in
Media CompatibilityAir, Gases, Nitrogen, Oxygen
Operating Pressure, Min0 psi
Operating Temperature, Max50 °C
Operating Temperature, Min10 °C
Output Detail0 to 5 Vdc (2500 Ω minimum)
Output SignalVoltage
Pressure Coefficient± 0.02%/psi
Pressure Drop, Max1 inH₂O
Process Connection TypeCompression Fitting
Repeatability± 0.5%
Response Time2 sec
Response Time Note2 seconds (typical) to within ± 2% of actual flow rate from 25 to 100% of full scale
Supply Current100 mA
Supply Voltage12 to 15 Vdc
Temperature Coefficient± 0.2%/°C
Turndown Ratio10:1
Volumetric Flow Rate, Min2 SCCM
Weight0.44 lb
Width1.03 in
