Phoenix Contact 1105556 Uninterruptible power supply TRIO-UPS-2G/1AC/24DC/20
Normally In Stock
Code: 738330
Phoenix Contact TRIO-UPS-2G/1AC/24DC/20 - TRIO, UPS, 100 VAC - 240 VAC, IP20 - 1105556
Condition: New
Usually ships Same Day or Next Day$614.21
Sale Price
$511.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1105556 The TRIO UPS is a self-contained unit that combines power supply and control functions into one device, featuring built-in Modbus/RTU communication capabilities via USB, easy DIN rail mounting for installation flexibility, push-in connection options for secure wiring, and operates on single-phase power with a maximum output of 24V DC at 20 amps.
Specifications
Component
DC UPS
Manufacturer
Phoenix Contact
Power Supply Voltage Input Range
100 VAC - 240 VAC
Features
Space saving: Combination of UPS module and power supply in the same housing

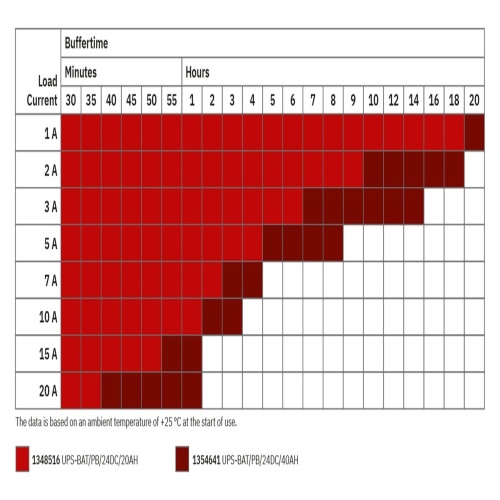

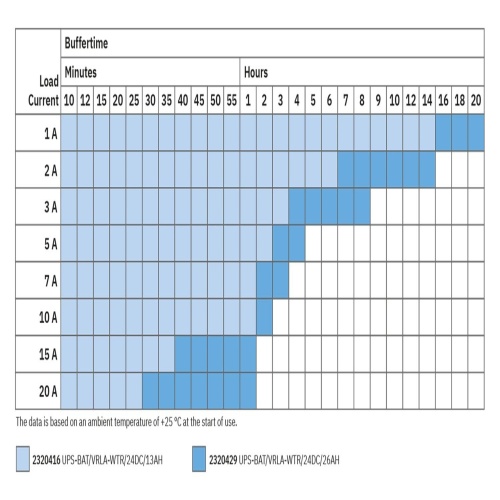

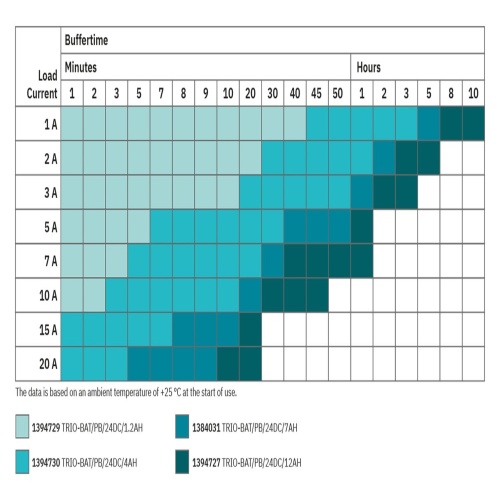

Long buffer times, thanks to large selection of VRLA energy storage systems
USB interface for connection to higher-level controllers such as industrial PCs
Startup from the energy storage system possible, even without mains input
Universal range of possible applications, thanks to a comprehensive package of approvals and an extended temperature range
Easy installation, thanks to push-in connection technology
Downloads
083227819_00_ULListCAUS_FILEE123528.pdf083227821_00_ULListHazlocCAUS_FILEE199827.pdf097152873_00_DoC_EU.pdf097633262_00_KCKR_R-R-PCK-1105556.pdfcoc document.pdfdocumentation of the ecological footprint.pdfeu declaration of conformity.pdfmodbus parameter - trio ups 2g_modules_en.dxfproduct drawing.dxfproduct drawing.pdfsimplified 3d model of the item.stpSpecification Sheet.pdfuk declaration of conformity.pdfuk declaration of conformity.stp
