Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 738062

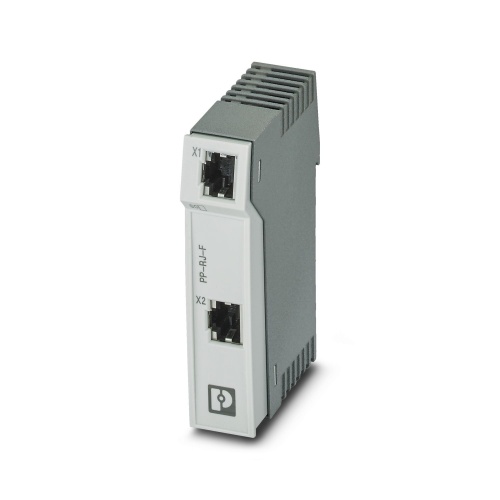

Phoenix Contact 2703020 Patch panel PP-RJ-RJ-F
Normally In Stock
Phoenix Contact PP-RJ-RJ-F - Patch panel - 2703020
Condition: New
Usually ships Same Day or Next Day$212.35
Sale Price
$176.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

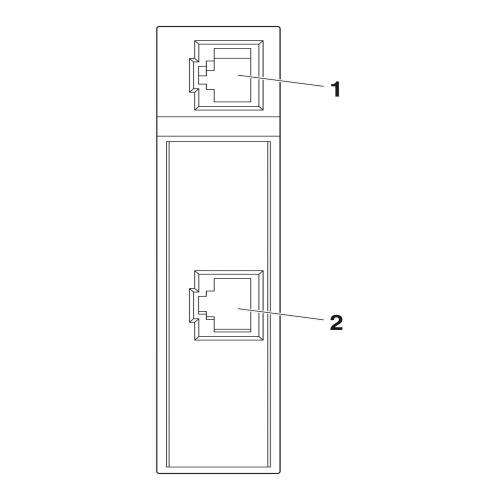

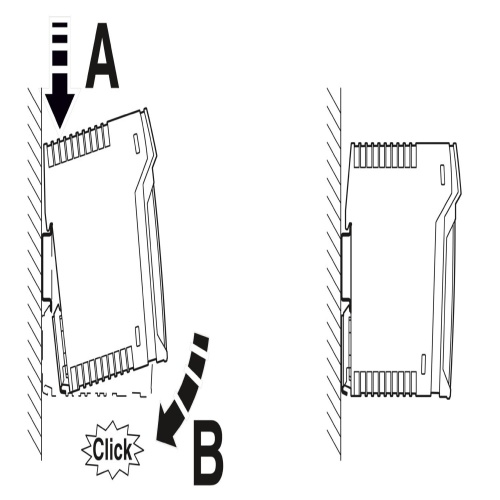

Phoenix Contact 2703020 A patch panel is equipped with two RJ45 jacks, a CAT5e cable, and supports speeds of up to 10/100/1000 Mbps. It also features a DIN rail adapter for easy mounting on a wall, has an IP20 rating for dust resistance, comes with shield current monitoring, and includes surge protection against power surges or spikes.
Specifications
Manufacturer
Phoenix Contact
Component
Patch Panel
Features
10/100/1000 Mbps
Extended temperature range of -40 °C ... +75 °C
Integrated surge protection to ensure high system availability

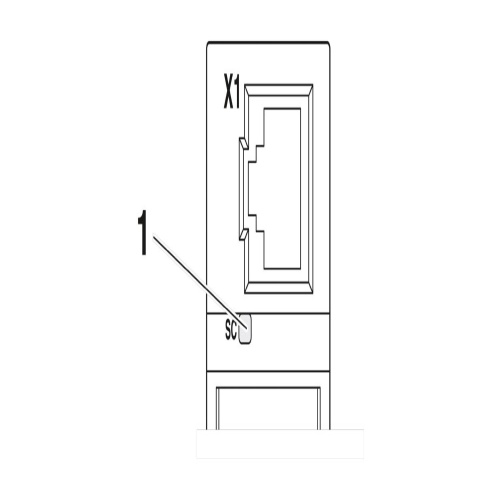

Shield current monitoring with visual display
Shipbuilding approval in accordance with DNV GL
PoE-capable in accordance with IEEE 802.3bt, type 4
Downloads
083151510_05_DNVGLShip_TAA00001KR.pdfccc-exempt declaration.pdfchina rohs declaration-spreadsheet.pdfChina RoHS Declaration_2703020_04_en.pdfcoc document.pdfeu declaration of conformity.pdfmanufacturer's declaration for high altitudes.pdfmanufacturer's declaration for noxious gas test.pdfmanufacturer's declaration for railway application.pdfPhoenix Data Sheet.pdfproduct drawing.dxfsimplified 3d model of the item.stpSpecification Sheet.pdf
