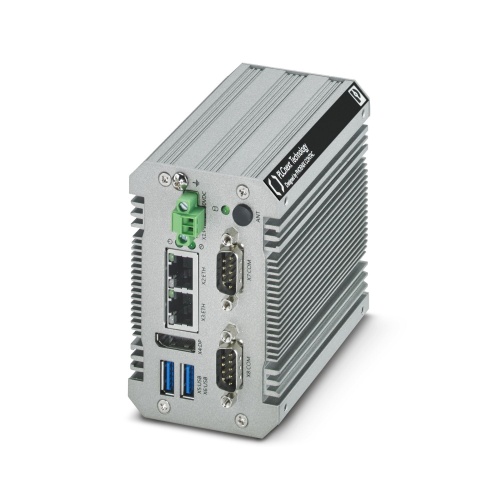

Phoenix Contact 1185423 Edge device EPC 1522
Normally In Stock
Code: 737907
Phoenix Contact EPC 1522 - Edge device - 1185423
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2132.33
Sale Price
$1776.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1185423 The PLCnext Industrial Edge Computer is a compact, programmable edge device powered by the Intel Celeron N3350 processor that enables industrial applications with various software support including IEC 61131-3, MATLAB Simulink, and C/C++, making it suitable for protocol conversion, data collection, and cloud computing tasks.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Sub Component
Edge Device
Features
Local output of visualizations via DisplayPort
Seamless support in PLCnext Engineer for OT programming
Connection to PROFICLOUD
Connection to PLCnext Store, for installing e.g. Node-RED, InfluxDB or Docker-Portainer
Numerous protocols supported such as: http, https, FTP, SNTP, SNMP, SMTP, SQL, MySQL, DCP, etc.
Two independent Ethernet interfaces and WIFI
High-level programming languages: IEC61131-3, C/C++, MATLAB Simulink
Constistent graphical programming interfaces
Downloads
001300525_02_ULListCA_E238705D12D1050.pdf001300547_04_CB_US-39601-M1-UL.pdfccc-exempt declaration.pdfchina rohs declaration-spreadsheet.pdfChina RoHS Declaration_1185423_08_en.pdfcoc document.pdfdevice description file for subordinate use with a siemens profinet controller..stpeu declaration of conformity.pdfPhoenix Data Sheet.pdfplcnext technology c++ tool chain for linux including compiler, eclipse add-in, microsoft visual studio extension, and librarybuilder..pdfproduct drawing.dxfSpecification Sheet.pdf
