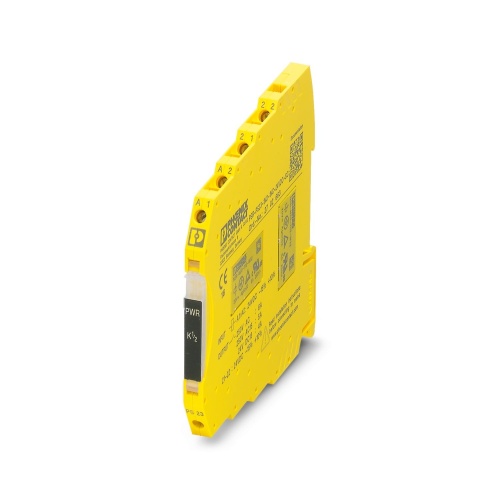

Phoenix Contact 2702663 Coupling relay PSR-PS23-1NO-1NC-24VDC-SC
Normally In Stock
Code: 73089
PSR-PS23-1NO-1NC-24VDC-SC Phoenix 2702663 Coupling relay
Condition: New
Usually ships Same Day or Next Day$212.51
Sale Price
$177.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

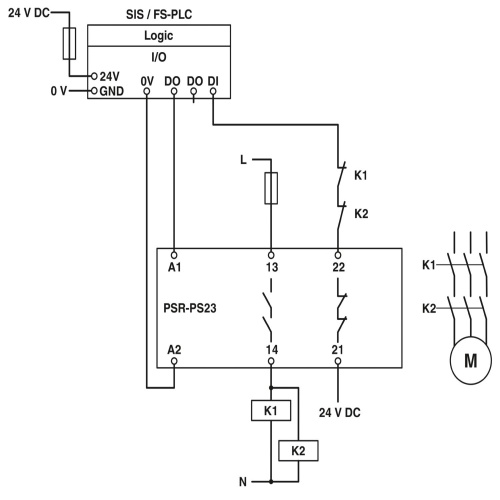

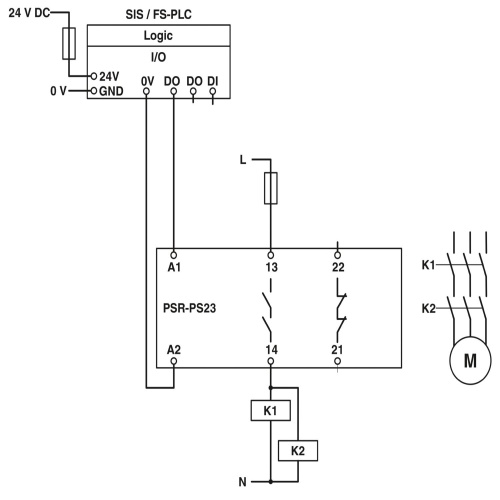

Phoenix Contact 2702663 A coupling relay suitable for SIL 3 high and low-demand applications provides a means to couple digital output signals directly to the I/O, enabling both an active current path and a confirmation current path, as well as a safe state-off feature. Additionally, it incorporates a test pulse filter and a fixed screw terminal block, which are useful features for ensuring reliable operation and facilitating easy maintenance or adjustments if needed.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
1 Enabling Current Path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Supply Voltage
24 Volt
Features
Low housing width of just 6.8 mm
Easy proof test according to IEC 61508
Suitable for high and low-demand applications up to SIL 3 in accordance with IEC 61508, IEC 61511, and EN 50156
Force-guided contacts in accordance with EN 50205
Long service life thanks to filtering of controller test pulses
1 enabling current path, 1 diagnostic current path
Integrated DCS test pulse filter
Corrosion protection through protective coating on the PCB
