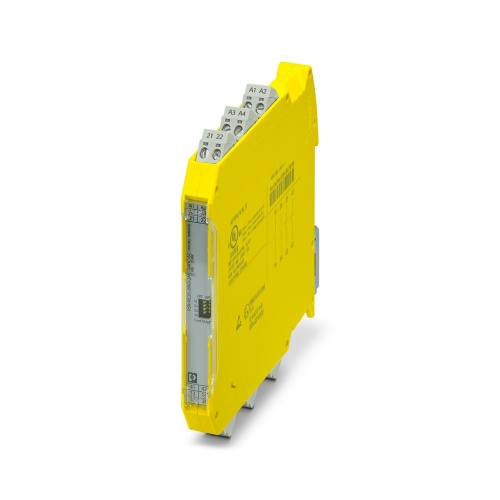

Phoenix Contact 1086945 Coupling relay PSR-PC21-2NO-2NC-24DC-SC
Normally In Stock
Code: 73061
PSR-PC21-2NO-2NC-24DC-SC Phoenix 1086945 Coupling relay
Condition: New
Usually ships Same Day or Next Day$186.77
Sale Price
$155.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1086945 A coupling relay designed for SIL 3 high and low-demand applications features independently controllable enabling and confirmation current paths, as well as a safe state off function, allowing for precise control over digital output signals to the I/O. Additionally, it includes a test pulse filter and comes with a pluggable screw terminal block, making it suitable for various requirements of SIL 3 applications.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
2 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Easy proof test according to IEC 61508 thanks to integrated signal contact
Approved for Class I, Zone 2 applications
Force-guided contacts in accordance with EN 50205
Up to SIL 3 in accordance with IEC 61508, IEC 61511, and IEC 50156
Low housing width of just 12.5 mm
Long service life thanks to filtering of controller test pulses
2 enabling current paths, 2 confirmation current paths
Independent control of the relay channels possible
