Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

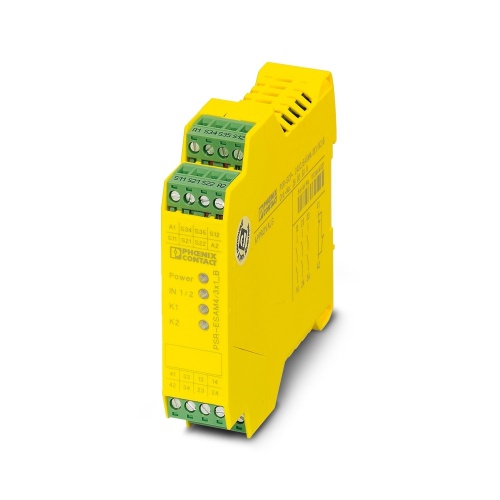

Phoenix Contact 2900509 Safety relays PSR-SCP- 24UC/ESAM4/3X1/1X2/B
Normally In Stock
Code: 72902
PSR-SCP- 24UC/ESAM4/3X1/1X2/B Phoenix 2900509 Safety relays
Condition: New
Usually ships Same Day or Next Day$307.66
Sale Price
$256.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2900509 A safety relay provides emergency stop and safety door monitoring capabilities up to SIL 3 or Cat. 4, PL e standards as defined in EN ISO 13849, supporting two-channel operation with three enabling current paths, operating within a nominal input voltage of 24V DC, utilizing a plug-in screw terminal block for convenient connection options.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Input Voltage
24 Volt
Features
2 channel control
Manually monitored and automatic activation in a single device
Basic insulation
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
3 enabling current paths, 1 signaling current path
