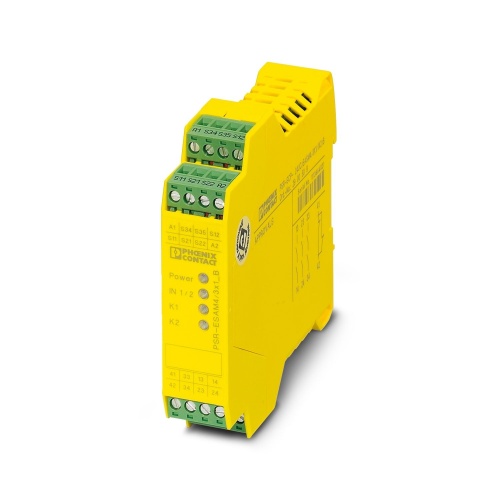

Phoenix Contact 2900510 Safety relays PSR-SPP- 24UC/ESAM4/3X1/1X2/B
Normally In Stock
Code: 72837
PSR-SPP- 24UC/ESAM4/3X1/1X2/B Phoenix 2900510 Safety relays
Condition: New
Usually ships Same Day or Next Day$273.01
Sale Price
$227.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2900510 A safety relay is designed for emergency stop and safety door monitoring applications up to SIL 3 or Cat. 4, in compliance with EN ISO 13849. It features a 2-channel operation with 3 enabling current paths, suitable for nominal input voltages of 24V DC. The device includes a pluggable Push-in terminal block for convenient connections.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Contact Type
1 Signaling Current Path
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Input Voltage
24 Volt
Features
2 channel control
Manually monitored and automatic activation in a single device
Basic insulation
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
3 enabling current paths, 1 signaling current path
