Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

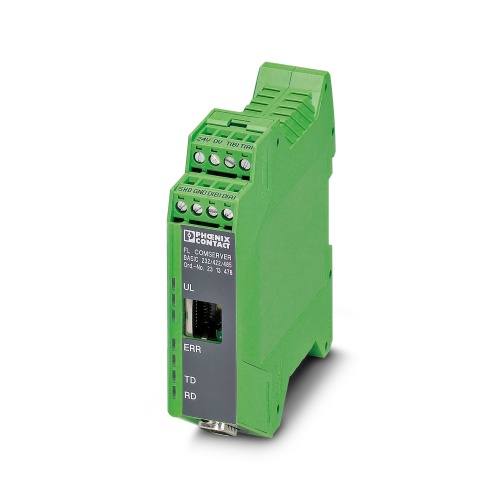

Phoenix Contact 2313478 Interface converters FL COMSERVER BASIC 232/422/485
Normally In Stock
Code: 72642
FL COMSERVER BASIC 232/422/485 Phoenix 2313478 Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3,Ethernet,V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1,RS-232,RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1,RS-422,RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire,RS-485 Ethernet:1, RJ45 socket, shielded,D-SUB 9 plug,Plug-in/screw connection via COMBICON PA 6.6-FR Interface converters Interface converters
Condition: New
Usually ships Same Day or Next Day$554.77
Sale Price
$462.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

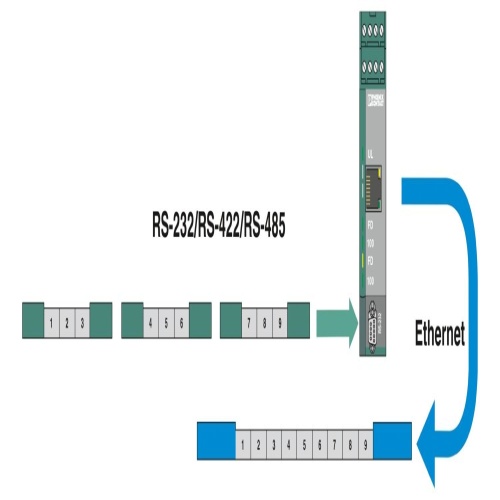

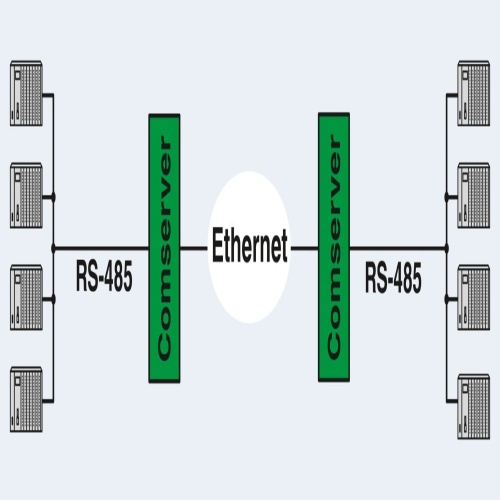

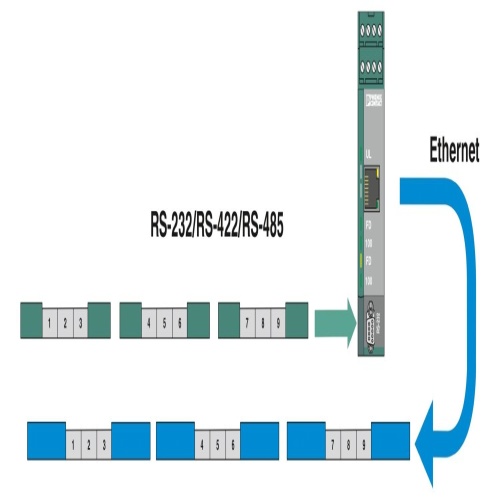

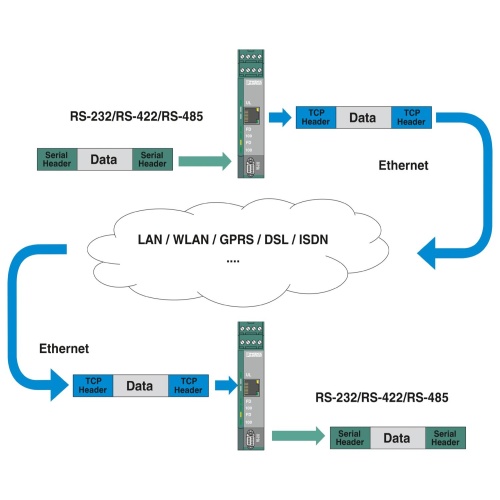

Phoenix Contact 2313478 The second generation FL COMSERVER BASIC is a serial device server that acts as an intermediary between serial interfaces such as RS-232/422/485 and Ethernet connections, allowing only TCP and UDP-based applications to be utilized, accompanied by the included Com Port Redirector software and PDF user documentation.
Specifications
Communication Interface
Ethernet
Communication Interface
Ethernet Interface
Communication Interface
10-100Base-T(X) In Accordance With IEEE 802.3
Communication Interface
EIA-TIA-232
Communication Interface
DIN 66259-1
Communication Interface
RS-232
Communication Interface
RS-422 Interface In Acc. With ITU-T V.11
Communication Interface
EIA-TIA-422
Communication Interface
DIN 66348-1
Communication Interface
RS-422
Communication Interface
RS-485 Interface
Communication Interface
In Acc. With EIA-TIA-485
Communication Interface
DIN 66259-4-RS-485 2-Wire
Communication Interface
RS-485
Communication Transmission Length
≤ 100 M (Shielded Twisted Pair)
Component
Interface Converter
Manufacturer
Phoenix Contact
Communication Interface
V.24 (RS-232) Interface In Acc. With ITU-T V.28
Communication Connection Method
RJ45 Socket Shieldedd-SUB 9 Plugplug-In-Screw Connection Via COMBICON
Features
Configuration via web-based management
Software for virtual COM ports supplied as standard
TCP and UDP support
Reasonably-priced version
All connections can be plugged in using a COMBICON screw terminal block
Downloads
downloads.htmmanagement information base.stpPhoenix 2313478 Application Note English.pdfPhoenix 2313478 CAD data International.dxfPhoenix 2313478 CAD data International.pdfPhoenix 2313478 CAD data International.stpPhoenix 2313478 Data Sheet English.pdfPhoenix 2313478 Device Description International.mibPhoenix 2313478 Firmware International.zipPhoenix 2313478 Manufacturers declaration English.pdfPhoenix 2313478 Manufacturers declaration International-2.pdfPhoenix 2313478 Manufacturers declaration International-3.pdfPhoenix 2313478 Manufacturers declaration International-4.pdfPhoenix 2313478 Manufacturers declaration International-5.pdfPhoenix 2313478 Manufacturers declaration International-6.pdfPhoenix 2313478 Manufacturers declaration International.pdfPhoenix 2313478 Package Slip International.pdfPhoenix 2313478 Software English.zipPhoenix 2313478 Software International.zipPhoenix 2313478 Tender Text English.zipPhoenix 2313478 Various English-2.pdfPhoenix 2313478 Various English.pdfproduct drawing.dxf
