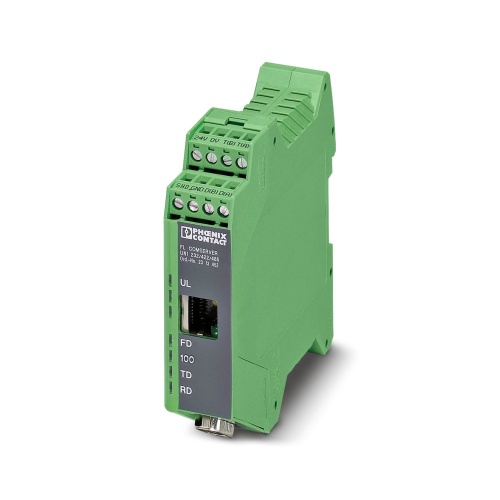

Phoenix Contact 2313452 Interface converters FL COMSERVER UNI 232/422/485
Normally In Stock
Code: 72641
FL COMSERVER UNI 232/422/485 Phoenix 2313452 Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3,Ethernet,V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1,RS-232,RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1,RS-422,RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire,RS-485 Ethernet:1, RJ45 socket, shielded,D-SUB 9 plug,Plug-in/screw connection via COMBICON PA 6.6-FR Interface converters Interface converters
Condition: New
Usually ships Same Day or Next Day$778.39
Sale Price
$648.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

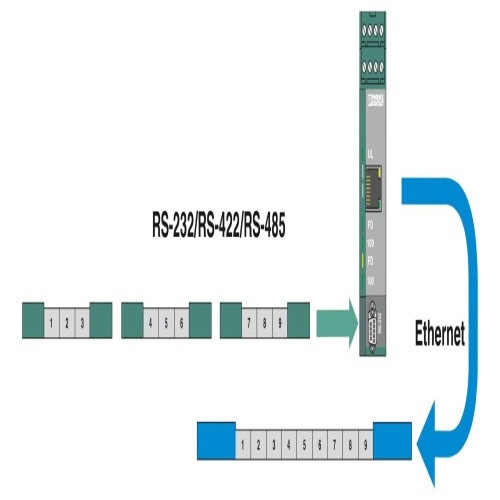

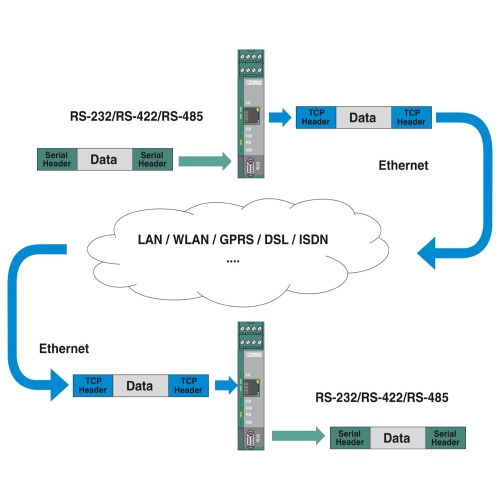

Phoenix Contact 2313452 A second generation FL COMSERVER UNI serial device server converts serial interfaces like 232/422/485 into Ethernet connectivity, supporting protocols such as TCP, UDP, Modbus gateway, and PPP applications, along with complimentary COM port redirector software and user documentation.
Specifications
Communication Interface
Ethernet
Communication Interface
Ethernet Interface
Communication Interface
10-100Base-T(X) In Accordance With IEEE 802.3
Communication Interface
EIA-TIA-232
Communication Interface
DIN 66259-1
Communication Interface
RS-232
Communication Interface
RS-422 Interface In Acc. With ITU-T V.11
Communication Interface
EIA-TIA-422
Communication Interface
DIN 66348-1
Communication Interface
RS-422
Communication Interface

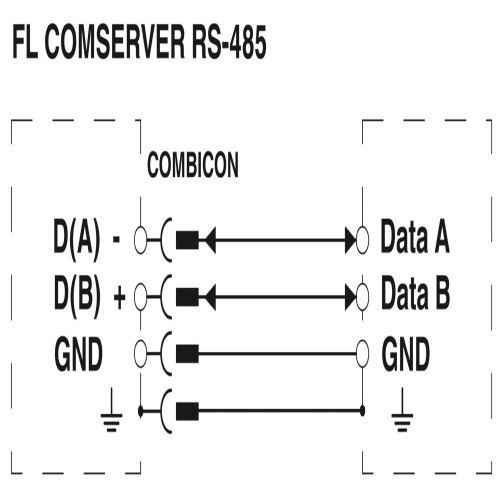

RS-485 Interface
Communication Interface
In Acc. With EIA-TIA-485
Communication Interface
DIN 66259-4-RS-485 2-Wire
Communication Interface
RS-485
Communication Transmission Length
≤ 100 M (Shielded Twisted Pair)
Component
Interface Converter
Manufacturer
Phoenix Contact
Communication Interface
V.24 (RS-232) Interface In Acc. With ITU-T V.28
Communication Connection Method
RJ45 Socket Shieldedd-SUB 9 Plugplug-In-Screw Connection Via COMBICON
Features
Software for virtual COM ports supplied as standard
All connections can be plugged in using a COMBICON screw terminal block
Configuration via web-based management
Modbus gateway between Modbus/RTU / ASCII and Modbus/TCP
