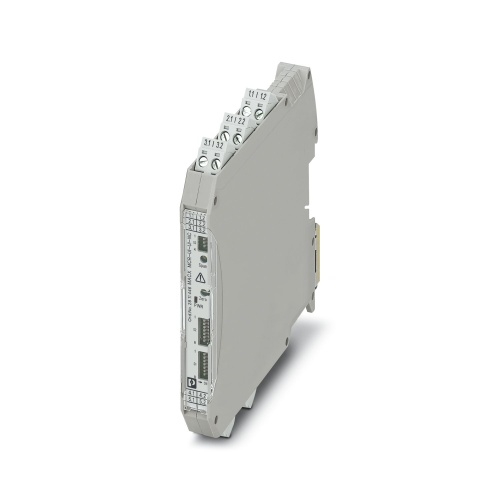

Phoenix Contact 2811446 Signal conditioner MACX MCR-UI-UI-NC
Normally In Stock
Code: 72298
MACX MCR-UI-UI-NC MACX MCR-UI-UI-NC Phoenix Contact 2811446 CE Signal conditioner
Condition: New
Usually ships Same Day or Next Day$646.12
Sale Price
$538.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2811446 This is a configurable 3-way isolating amplifier that features safe electrical isolation and can operate at 24V with power bridging capabilities. It has DIP switches on the front that allow for over 1600 signal conversions to be set, with a standard configuration that includes input range of 0-10V and output current of 0-20mA. The amplifier uses screw connections and is made of SIL material.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Component
Signal Conditioner
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Conditioner Output Signal Range
0 Ma - 5 Ma
Conditioner Output Signal Range
0 Ma - 10 Ma
Conditioner Output Signal Range
1 Ma - 5 Ma
Conditioner Output Signal Range
2 Ma - 10 Ma
Conditioner Output Signal Range
-5 Ma - 5 Ma
Conditioner Output Signal Range
-10 Ma - 10 Ma
Conditioner Output Signal Range
-20 Ma - 20 Ma
Conditioner Output Signal Range
0 Volt - 10 Volt
Conditioner Output Signal Range
-10 Volt - 10 Volt
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Conditioner Output Signal Range
2 Volt - 10 Volt
Conditioner Output Signal Range
-5 Volt - 5 Volt
Conditioner Output Signal Range
0 Volt - 2.5 Volt
Conditioner Output Signal Range
0.5 Volt - 2.5 Volt
Conditioner Output Signal Range
-2.5 Volt - 2.5 Volt
Features
Up to SIL 2 in accordance with EN 61508
Over 1600 signal conversions can be set via DIP switches on the front
Installation in zone 2 permitted
Power supply possible via DIN rail connector
3-way electrical isolation
Analog signal conditioner for isolating, filtering, amplifying, and converting standard analog signals
Configurable input and output signals, including bipolar current and voltage signals
10 kHz limit frequency for time-critical applications
Status indicator for supply voltage
Active or passive output
Plug-in screw or spring-cage connection technology (Push-in technology)
Downloads
Phoenix 2811446 Application Note English.pdfPhoenix 2811446 CAD data International.dxfPhoenix 2811446 CAD data International.pdfPhoenix 2811446 CAD data International.stpPhoenix 2811446 Certification English.pdfPhoenix 2811446 Certification International.pdfPhoenix 2811446 Data Sheet English.pdfPhoenix 2811446 Manual English.pdfPhoenix 2811446 Manufacturers declaration English.pdfPhoenix 2811446 Manufacturers declaration International-2.pdfPhoenix 2811446 Manufacturers declaration International.pdfPhoenix 2811446 Package Slip International.pdfPhoenix 2811446 Software International.xlsPhoenix 2811446 Tender Text English.zip
