Code: 722570
Phoenix Contact 1263391 Device connector front mounting SACC-E-M8FS-4CON-M8/2,5
Normally In Stock
Phoenix Contact SACC-E-M8FS-4CON-M8/2,5 - Device connector front mounting, 4 Positions, 48 VAC, 4 Amp, CuSn - 1263391
Condition: New
Usually ships Same Day or Next Day$23.41
Sale Price
$19.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

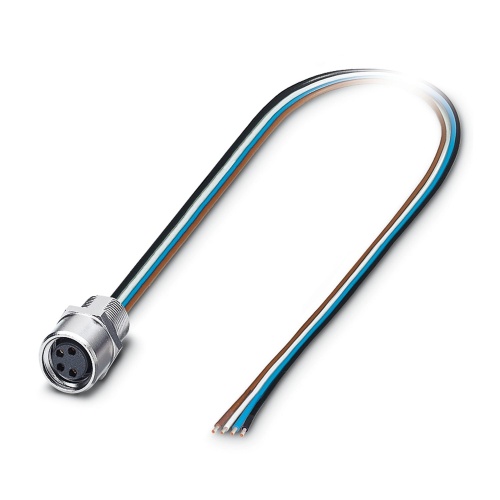

Phoenix Contact 1263391 A device connector with a front mounting design, featuring four positions and an M8 socket, is straight in orientation and coded as A type, with the following specifications: it can be mounted on the front, uses an M8 x 0.5 threaded connection, has individual wires, measures 2.5 meters in length, consists of PVC litz wire with a cross-sectional area of 0.25 mm^2.
Specifications
Connector Amperage
4 Amp
Connector Material
Cusn
Component
Circular Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness

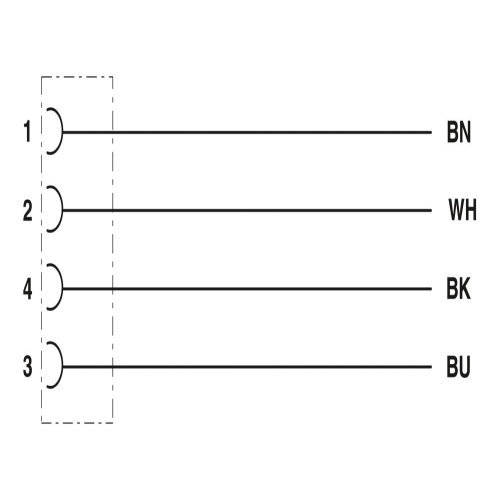

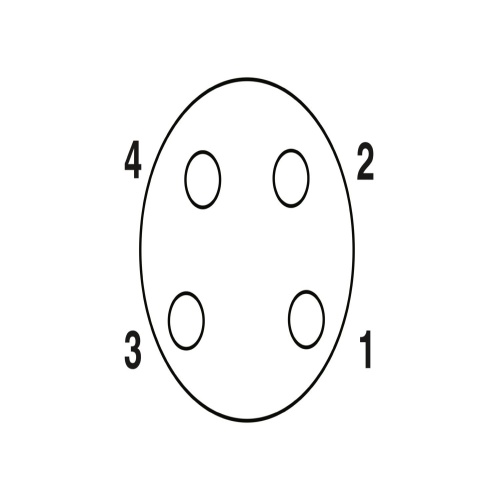

Standard pin assignments and codings for signal transmission with a uniform design-in design
