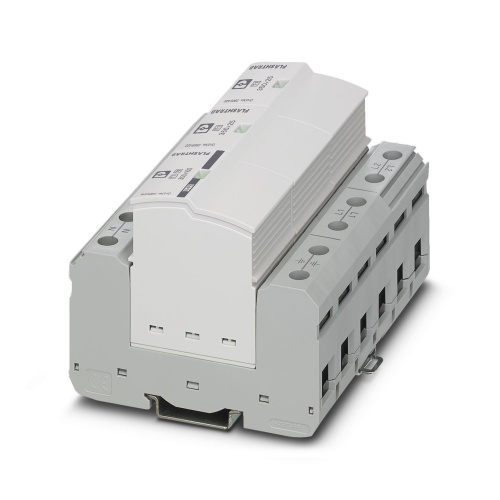

Phoenix Contact 2905418 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-2S-350/25-FM
Normally In Stock
Code: 72170
FLT-SEC-P-T1-2S-350/25-FM Phoenix 2905418 Combination type 240/415 VAC Plug-in/screw connection via COMBICON,Screw terminal blocks,Fork-type cable lug Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships Same Day or Next Day$1312.99
Sale Price
$1094.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

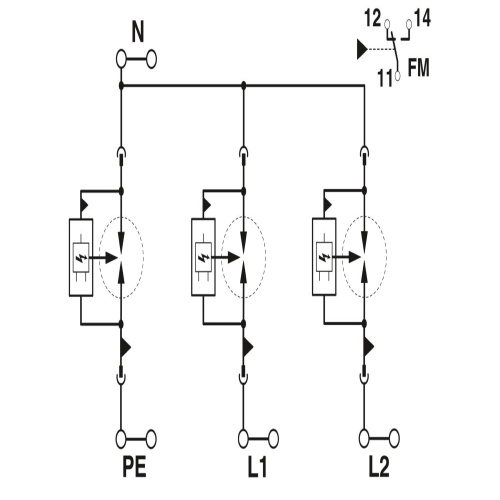

Phoenix Contact 2905418 The device is a plug-in lightning arrester that meets type 1/class i standards for use with 2-phase power supply networks, featuring separate neutral and earth conductors (N and PE) for lines (L1, L2), phase (PE), and neutral (N).
Specifications
Fault Warning
None
Arrester Class according to IEC
I
Arrester Class according to IEC
T1
Max Discharge Capacity
80 A
Impulse Discharge Current
100 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Combination Type
Maximum Continous Voltage
260 Volt
Nominal Discharge Current
100 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Low voltage protection level for direct protection of end devices in the main distribution area
Downloads
Phoenix 2905418 CAD data International.dxfPhoenix 2905418 CAD data International.pdfPhoenix 2905418 CAD data International.stpPhoenix 2905418 Flyer English-2.pdfPhoenix 2905418 Flyer English.pdfPhoenix 2905418 Manufacturers declaration English.pdfPhoenix 2905418 Manufacturers declaration International.pdfPhoenix 2905418 Package Slip International.pdfPhoenix 2905418 Surge Protection English.pdfPhoenix 2905418 Tender Text English.zip
