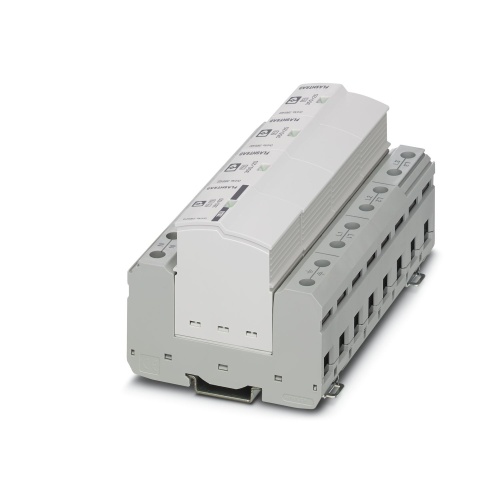

Phoenix Contact 2905421 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-3S-350/25-FM
Normally In Stock
Code: 72168
FLT-SEC-P-T1-3S-350/25-FM Phoenix 2905421 Combination type 240/415 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships Same Day or Next Day$1590.97
Sale Price
$1325.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

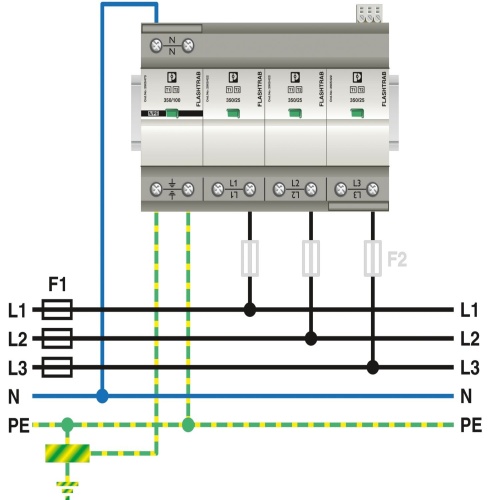

Phoenix Contact 2905421 A plug-in lightning arrester that meets type 1/class I standards is required for 3-phase power supply networks, specifically where there are separate neutral (N) and earth (PE) conductors designated as N (live lines) and PE (neutral line), with further designations such as L1, L2, and L3 for live lines.
Specifications
Fault Warning
Optical
Max Discharge Capacity
16 A (30 °C)
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Combined Surge
4 Kv
Direction of Action
L-N-PE
Direction of Action
Signal Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Device Protection
Nominal Discharge Current
3 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic

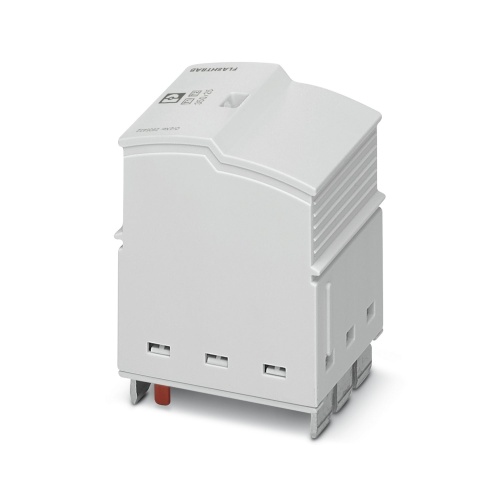

Easy to maintain due to consistently pluggable protection modules

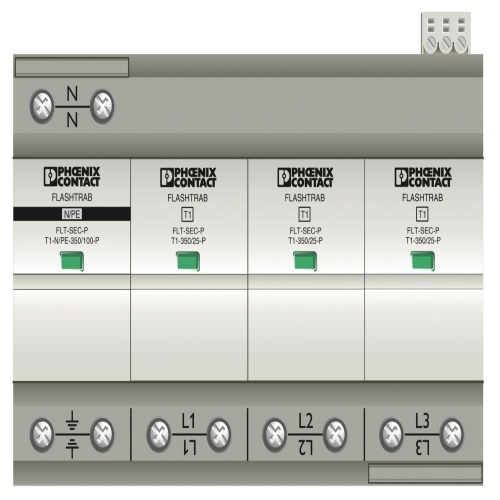

Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Low voltage protection level for direct protection of end devices in the main distribution area
Downloads
Phoenix 2905421 CAD data International.dxfPhoenix 2905421 CAD data International.pdfPhoenix 2905421 CAD data International.stpPhoenix 2905421 Flyer English-2.pdfPhoenix 2905421 Flyer English.pdfPhoenix 2905421 Manufacturers declaration English.pdfPhoenix 2905421 Manufacturers declaration International.pdfPhoenix 2905421 Package Slip International.pdfPhoenix 2905421 Product Information English.pdfPhoenix 2905421 Surge Protection English.pdfPhoenix 2905421 Tender Text English.zip
