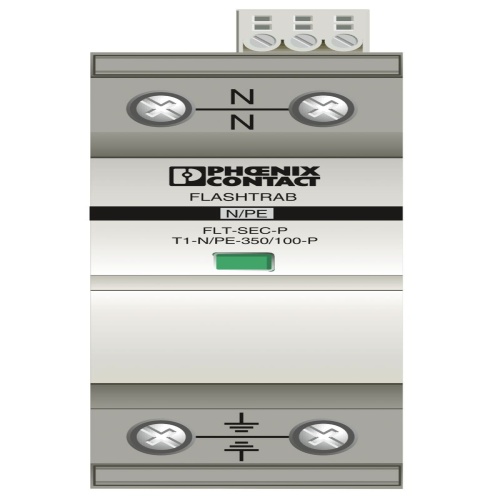

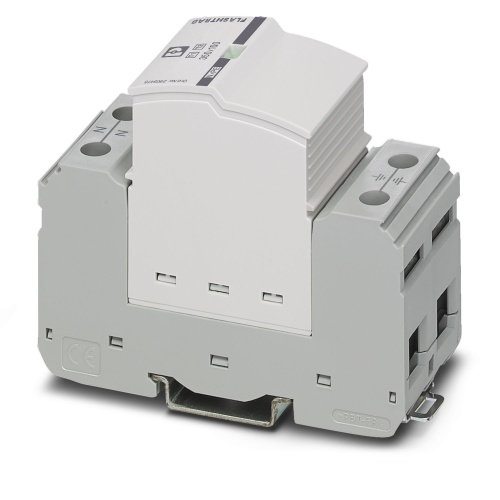

Phoenix Contact 2905472 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-N/PE-350/100-FM
Normally In Stock
Code: 72167
FLT-SEC-P-T1-N/PE-350/100-FM Phoenix 2905472 Combination type 240 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships Same Day or Next Day$339.23
Sale Price
$282.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905472 A plug-in lightning arrester that meets Type 1/Class I standards is designed to be leak-free, making it suitable for safe installation within power supply networks connected to neutral (N) and earth (PE) points.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Low voltage protection level for direct protection of end devices in the main distribution area
Downloads
Phoenix 2905472 CAD data International.dxfPhoenix 2905472 CAD data International.pdfPhoenix 2905472 CAD data International.stpPhoenix 2905472 Flyer English-2.pdfPhoenix 2905472 Flyer English.pdfPhoenix 2905472 Manufacturers declaration English.pdfPhoenix 2905472 Manufacturers declaration International.pdfPhoenix 2905472 Package Slip International.pdfPhoenix 2905472 Product Information English.pdfPhoenix 2905472 Surge Protection English.pdfPhoenix 2905472 Tender Text English.zip

Code: 72167
Phoenix Contact 2905472 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-N/PE-350/100-FM
