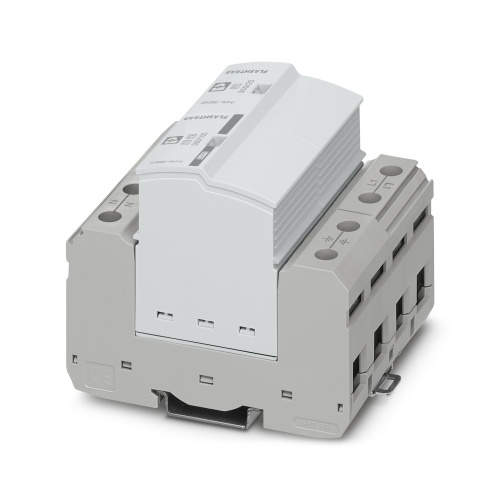

Phoenix Contact 2905415 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-1S-350/25-FM
Normally In Stock
Code: 72166
FLT-SEC-P-T1-1S-350/25-FM Phoenix 2905415 Combination type 240 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships Same Day or Next Day$771.73
Sale Price
$643.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905415 A plug-in lightning arrester that meets type 1 class I standards is required for single-phase power supply networks, featuring a distinction between the neutral (N), earth (PE) and live (L1) conductors.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Remote Indication Contact
Direction of Action
(L+)-PE
Direction of Action
(L-)-PE
Direction of Action
(L+)-(L-)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Base Element
Surge Protector Line Voltage
240 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Low voltage protection level for direct protection of end devices in the main distribution area
Downloads
Phoenix 2905415 CAD data International.dxfPhoenix 2905415 CAD data International.pdfPhoenix 2905415 CAD data International.stpPhoenix 2905415 Flyer English-2.pdfPhoenix 2905415 Flyer English.pdfPhoenix 2905415 Manufacturers declaration English.pdfPhoenix 2905415 Manufacturers declaration International.pdfPhoenix 2905415 Package Slip International.pdfPhoenix 2905415 Product Information English-2.pdfPhoenix 2905415 Product Information English.pdfPhoenix 2905415 Surge Protection English.pdfPhoenix 2905415 Tender Text English.zip
