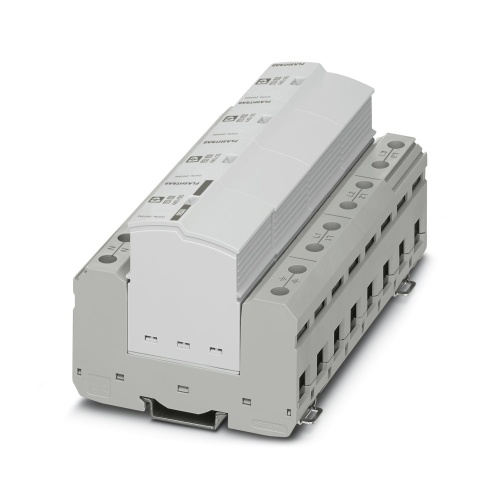

Phoenix Contact 2908264 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-3S-440/35-FM
Normally In Stock
Code: 72156
FLT-SEC-P-T1-3S-440/35-FM Phoenix 2908264 Combination type 400/690 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships Same Day or Next Day$2169.90
Sale Price
$1808.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2908264 Plug-in lightning arresters that meet Type 1/Class I standards can be used in 3-phase power supply networks where the neutral and earth conductors are designated as N and PE respectively, allowing for higher nominal voltages without leakage current.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
760 Volt
Nominal Discharge Current
15 Ka
Surge Protector Line Voltage
400-690 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Maximum performance in a minimum amount of space: compact design with high discharge capacity at high nominal voltage
Downloads
Phoenix 2908264 CAD data International.dxfPhoenix 2908264 CAD data International.pdfPhoenix 2908264 CAD data International.stpPhoenix 2908264 Flyer English-2.pdfPhoenix 2908264 Flyer English.pdfPhoenix 2908264 Manufacturers declaration English.pdfPhoenix 2908264 Manufacturers declaration International.pdfPhoenix 2908264 Package Slip International.pdfPhoenix 2908264 Surge Protection English.pdfPhoenix 2908264 Tender Text English.zip
