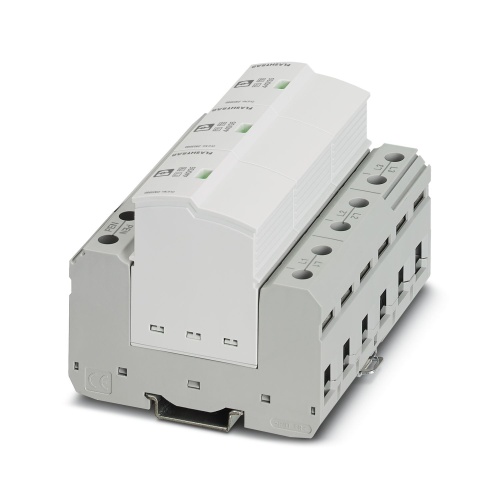

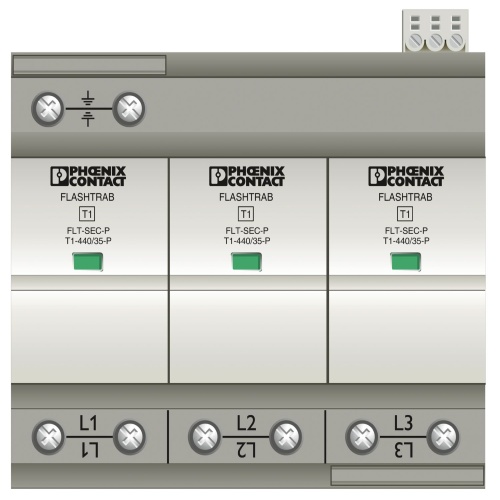

Phoenix Contact 2905988 Type 1+2 combined lightning current and surge arrester FLT-SEC-P-T1-3C-440/35-FM
Normally In Stock
Code: 72155
FLT-SEC-P-T1-3C-440/35-FM Phoenix 2905988 Combination type 400/690 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Combination type 1/2 protective device Surge Protection
Condition: New
Usually ships Same Day or Next Day$1881.02
Sale Price
$1567.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905988 For high-voltage applications, a plug-in lightning arrester that prevents leakage current is required with a Type 1/Class I rating, suitable for 3-phase power supplies used in both TN and IT configurations for phases L1, L2, L3, and PE.
Specifications
Max Discharge Capacity
125 A (< 55 °C)
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Impulse Discharge Current
50 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Combination Type
Maximum Continous Voltage
264 Volt
Nominal Discharge Current
50 Ka
Surge Protector Line Voltage
400-690 Volt
Component
Surge Arrester
Features
Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Maximum performance in a minimum amount of space: compact design with high discharge capacity at high nominal voltage
