Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

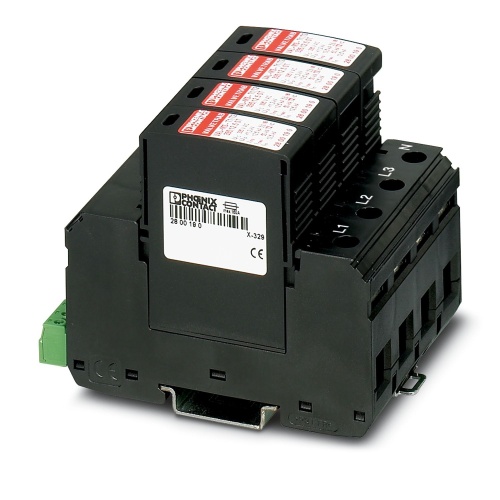

Phoenix Contact 2800644 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/4+0-FM
Normally In Stock
Code: 72146
VAL-MS-T1/T2 335/12.5/4+0-FM Phoenix 2800644 Arrester combination 240/415 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$935.86
Sale Price
$779.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

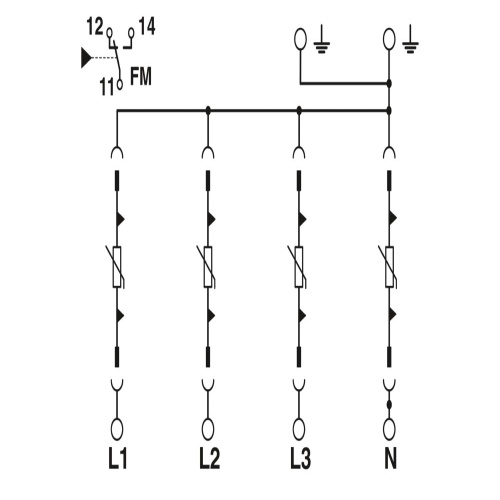

Phoenix Contact 2800644 A plug-in varistor-based lightning current arrester is designed to protect 3-phase TN-S power supply networks that use separate neutral and earth (N and PE) conductors, typically found in 5-conductor systems including live lines (L1, L2, L3), N, and PE. This type of arrester is suitable for Lightning Protection Levels III and IV and features a remote indication contact to signal when protection is required or has been activated.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Remote Indication Contact
Arrester Class according to IEC
PV T2
Arrester Class according to IEC
PV T1
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Base Element
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Can be used in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
Downloads
Phoenix 2800644 CAD data International.dxfPhoenix 2800644 CAD data International.pdfPhoenix 2800644 CAD data International.stpPhoenix 2800644 Flyer English.pdfPhoenix 2800644 Manufacturers declaration International.pdfPhoenix 2800644 Package Slip International.pdfPhoenix 2800644 Software International.zipPhoenix 2800644 Surge Protection English.pdfPhoenix 2800644 Tender Text English.zip
Code: 72146
Phoenix Contact 2800644 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/4+0-FM
$935.86
Sale Price
$779.88
