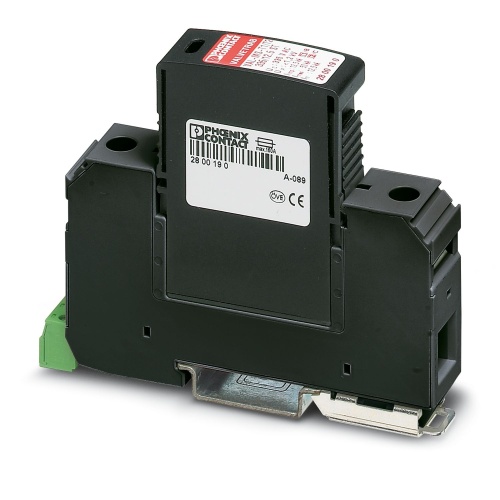

Phoenix Contact 2801042 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/1+0-FM
Normally In Stock
Code: 72138
VAL-MS-T1/T2 335/12.5/1+0-FM Phoenix 2801042 Arrester combination 240 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$229.31
Sale Price
$191.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

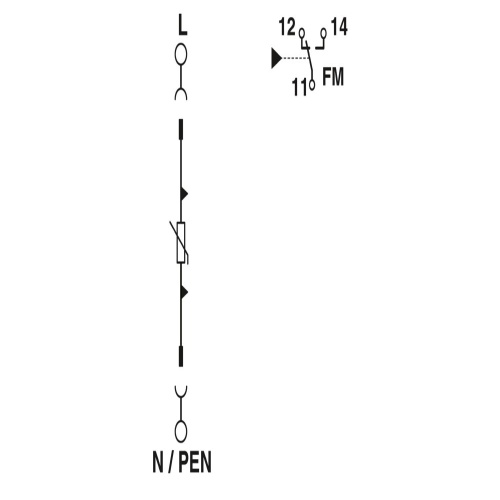

Phoenix Contact 2801042 A universal varistor-based plug-in lightning/surge arrester is designed for single-phase power supply networks that utilize a common neutral and earth (N and PE) conductor setup, where the live line conductor (L1) and earth/neutral conductor (PEN) share a two-conductor system. This type of system features remote indication contact, allowing users to be alerted if there's an issue with the arrester or the power supply network.
Specifications
Fault Warning
None
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
185 Volt
Nominal Discharge Current
2.5 Ka
Surge Protector Line Voltage
240 Volt
Component
Surge Arrester
Features
Can be used in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
Downloads
Phoenix 2801042 CAD data International.dxfPhoenix 2801042 CAD data International.pdfPhoenix 2801042 CAD data International.stpPhoenix 2801042 Flyer English.pdfPhoenix 2801042 Manufacturers declaration English.pdfPhoenix 2801042 Manufacturers declaration International.pdfPhoenix 2801042 Package Slip International.pdfPhoenix 2801042 Software International.zipPhoenix 2801042 Surge Protection English.pdfPhoenix 2801042 Tender Text English.zip
