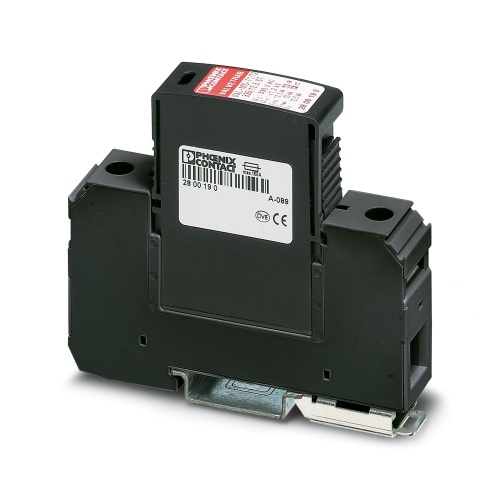

Phoenix Contact 2801041 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/1+0
Normally In Stock
Code: 72130
VAL-MS-T1/T2 335/12.5/1+0 Phoenix 2801041 Arrester combination 240 VAC Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$213.01
Sale Price
$177.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

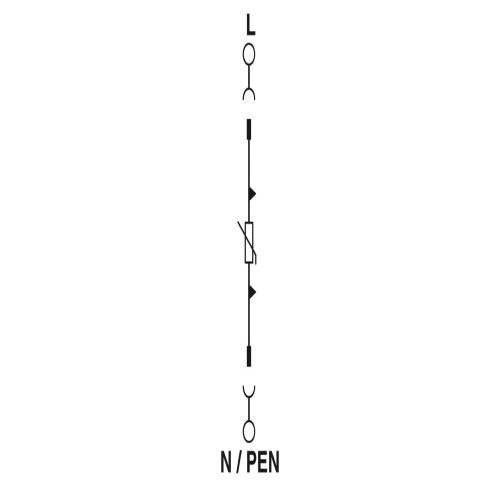

Phoenix Contact 2801041 A universal varistor-based plug-in lightning/surge arrester designed specifically for single-phase power supply networks that utilize a two-conductor system featuring neutral (N) and earth ground (PE), typically represented by the L1 and PEN conductors respectively.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
13 Volt
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
240 Volt
Component
Surge Arrester
Features
Can be used in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
