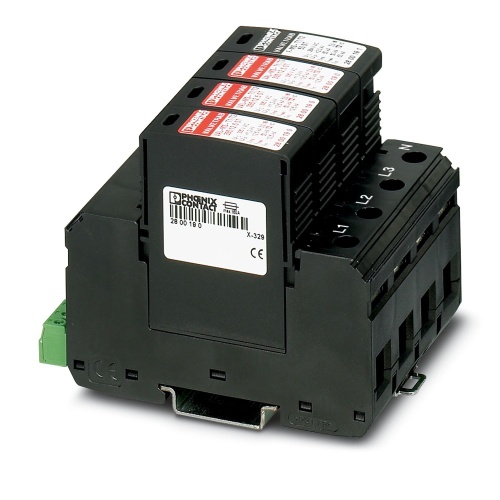

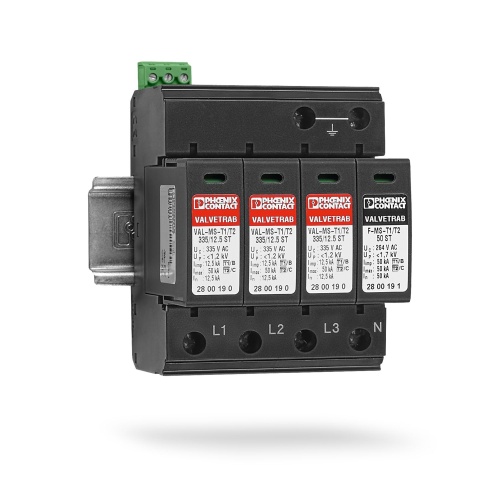

Phoenix Contact 2800183 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 335/12.5/3+1-FM
Normally In Stock
Code: 72129
VAL-MS-T1/T2 335/12.5/3+1-FM Phoenix 2800183 Arrester combination 240/415 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$921.55
Sale Price
$767.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

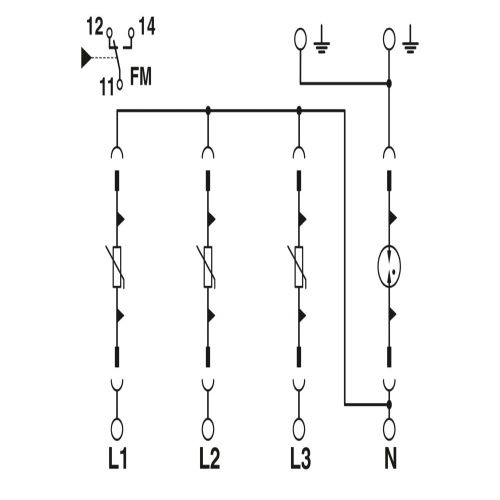

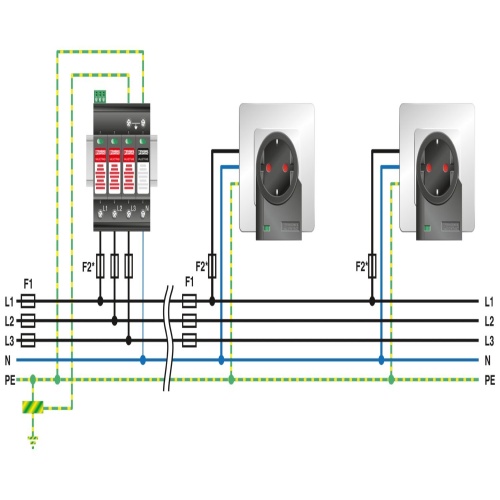

Phoenix Contact 2800183 A universal varistor-based plug-in lightning/surge arrester is designed for use in 3-phase power supply networks that feature separate neutral (N) and earth (PE) conductors, as part of a 5-conductor system including L1, L2, L3, N, and PE. This device provides protection against lightning and surge currents up to Lightning Protection Levels III and IV and is equipped with a remote indication contact.
Specifications
Fault Warning
Optical
Combined Surge
4 Kv
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
100 Volt
Nominal Discharge Current
2 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Can be used in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
Downloads
Phoenix 2800183 CAD data International.dxfPhoenix 2800183 CAD data International.pdfPhoenix 2800183 CAD data International.stpPhoenix 2800183 Flyer English.pdfPhoenix 2800183 Manufacturers declaration English.pdfPhoenix 2800183 Manufacturers declaration International.pdfPhoenix 2800183 Package Slip International.pdfPhoenix 2800183 Software International.zipPhoenix 2800183 Surge Protection English.pdfPhoenix 2800183 Tender Text English.zip
