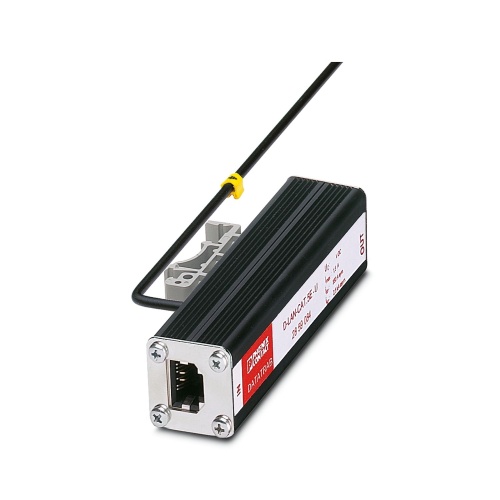

Phoenix Contact 2859084 Surge protection device D-LAN-CAT.5E-U
Normally In Stock
Code: 72084
D-LAN-CAT.5E-U Phoenix 2859084 Surge protection for information technology RJ45,RJ45 socket,Cable connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$178.33
Sale Price
$148.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2859084 The device features fine surge protection conforming to Class D (CAT 5e) standards, suitable for use on token ring and Ethernet connections, and comes equipped with an RJ45 attachment plug that includes a separate grounding cable and a snap-on foot designed for mounting on NS 35/7.5 DIN rails.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
14 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Device
Features
Conformance with all standards – both for surge protection and for high-speed networks
Protection for all common applications and signals with the complete product portfolio
Versatile use with application-specific designs and connection technologies
Easy testing with the pluggable protective device
Downloads
Phoenix 2859084 CAD data International.dxfPhoenix 2859084 CAD data International.pdfPhoenix 2859084 CAD data International.stpPhoenix 2859084 Certification English.pdfPhoenix 2859084 Flyer English.pdfPhoenix 2859084 Manufacturers declaration International.pdfPhoenix 2859084 Package Slip International.pdfPhoenix 2859084 Product Information English.pdfPhoenix 2859084 Software International.zipPhoenix 2859084 Surge Protection English.pdfPhoenix 2859084 Tender Text English.zip
