Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

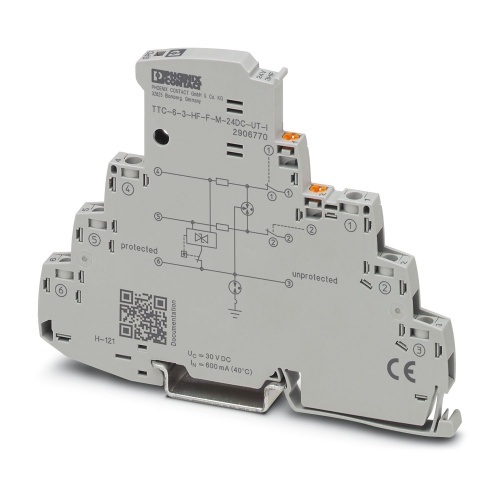

Phoenix Contact 2906770 Surge protection device TTC-6-3-HF-F-M-24DC-UT-I
Normally In Stock
Code: 72061
TTC-6-3-HF-F-M-24DC-UT-I Phoenix 2906770 Surge protection for information technology 24 VDC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$175.07
Sale Price
$145.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

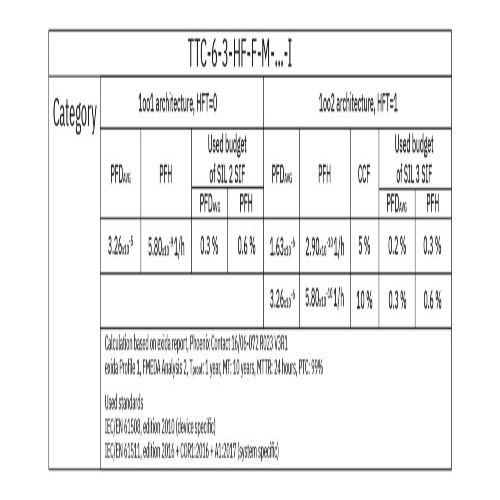

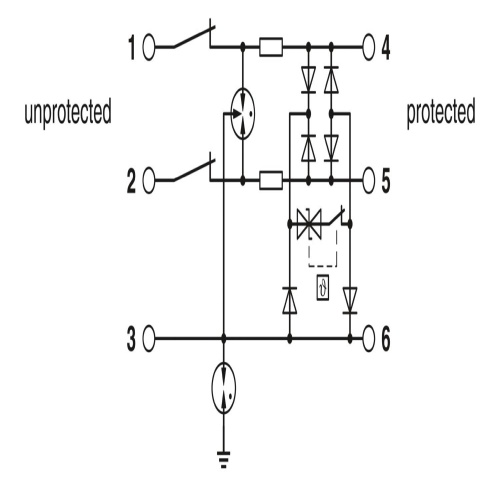

Phoenix Contact 2906770 A surge protection device is available that incorporates a status indicator and knife disconnection for three signal wires with a common reference potential, suitable for high-frequency applications and telecommunications interfaces without a supply voltage, typically up to 90 Mbps, and features indirect grounding via a gas discharge tube, making it compatible with HART technology and capable of being used in safety-related circuits up to SIL level 3.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Direction of Action
(L+)-PE
Direction of Action
(L-)-PE
Direction of Action
(L+)-(L-)
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Nominal Discharge Current
10 Ka
Component
Surge Protection Device
Features
Signal circuits easily interrupted for maintenance work, thanks to vertical knife disconnection
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

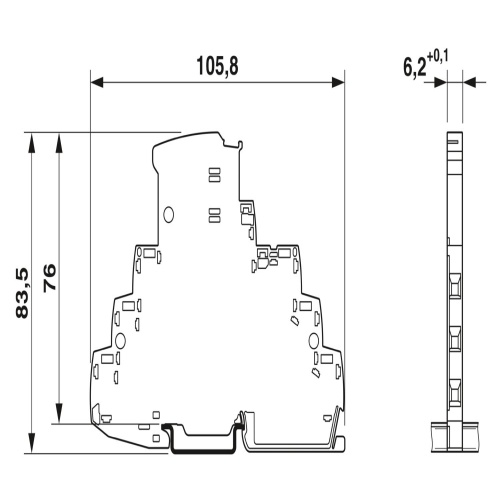

Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906770 Application Note English.pdfPhoenix 2906770 CAD data International.dxfPhoenix 2906770 CAD data International.pdfPhoenix 2906770 CAD data International.stpPhoenix 2906770 Certification International-2.pdfPhoenix 2906770 Certification International.pdfPhoenix 2906770 Flyer English-2.pdfPhoenix 2906770 Flyer English.pdfPhoenix 2906770 Manufacturers declaration English.pdfPhoenix 2906770 Manufacturers declaration International.pdfPhoenix 2906770 Product Information English.pdfPhoenix 2906770 Surge Protection English.pdfPhoenix 2906770 Tender Text English.zip
