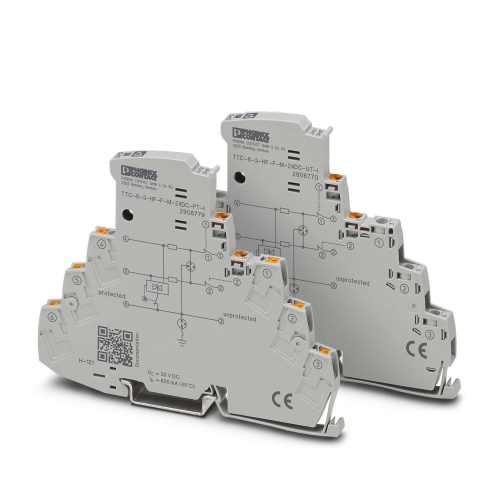

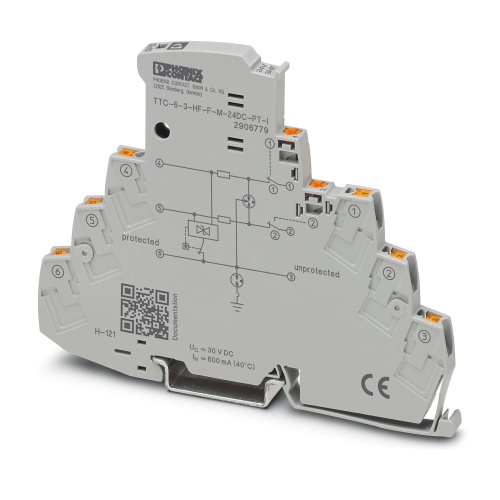

Phoenix Contact 2906779 Surge protection device TTC-6-3-HF-F-M-24DC-PT-I
Normally In Stock
Code: 72049
TTC-6-3-HF-F-M-24DC-PT-I Phoenix 2906779 Surge protection for information technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$175.07
Sale Price
$145.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2906779 This product provides surge protection with a built-in status indicator and knife disconnection for three signal wires sharing a common reference potential, making it suitable for high-frequency applications such as HF communications and telecommunications interfaces that operate without a supply voltage, supporting data transfer rates of up to 90 Mbps. Additionally, the device uses indirect grounding via gas discharge tube and is HART-compatible, allowing it to be used in safety-critical circuits up to SIL level 3.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
264 Volt
Max Discharge Capacity
40 A
Nominal Discharge Current
20 Ka
Component
Surge Protection Device
Features
Signal circuits easily interrupted for maintenance work, thanks to vertical knife disconnection
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906779 Application Note English.pdfPhoenix 2906779 CAD data International.dxfPhoenix 2906779 CAD data International.pdfPhoenix 2906779 CAD data International.stpPhoenix 2906779 Certification International-2.pdfPhoenix 2906779 Certification International.pdfPhoenix 2906779 Flyer English-2.pdfPhoenix 2906779 Flyer English.pdfPhoenix 2906779 Manufacturers declaration English.pdfPhoenix 2906779 Manufacturers declaration International.pdfPhoenix 2906779 Product Information English.pdfPhoenix 2906779 Surge Protection English.pdfPhoenix 2906779 Tender Text English.zip
