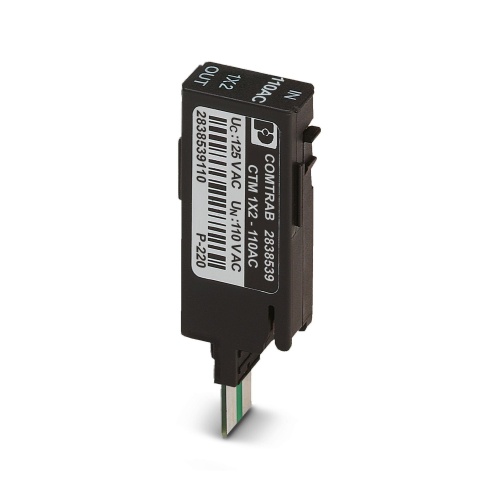

Phoenix Contact 2838539 Surge protection plug CTM 1X2-110AC
Normally In Stock
Code: 72032
CTM 1X2-110AC Phoenix 2838539 Surge protection for information technology 110 VAC can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips,COMTRAB plug-in system,Spring contact Surge protection plug Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$90.82
Sale Price
$75.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2838539 The LSA-PLUS plug is designed for use in floating signal circuits and provides protection against interference from analog and digital telecommunications interfaces that can reach speeds of up to 50 Mbps. It features a double wire configuration, safeguarding against such disruptions. The plug operates within a nominal voltage range of 110 V AC.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Direction of Action
Line-Line
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
1.5 Ka
Surge Protector Line Voltage
110 Volt
Component
Surge Protection Plug
Features
Flexible fields of application with modular protective plug
Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Space-saving due to compact design
Downloads
Phoenix 2838539 CAD data International.dxfPhoenix 2838539 CAD data International.pdfPhoenix 2838539 CAD data International.stpPhoenix 2838539 Flyer English.pdfPhoenix 2838539 Manufacturers declaration International.pdfPhoenix 2838539 Package Slip International.pdfPhoenix 2838539 Software International.zipPhoenix 2838539 Surge Protection English.pdfPhoenix 2838539 Tender Text English.zip
