Code: 71882

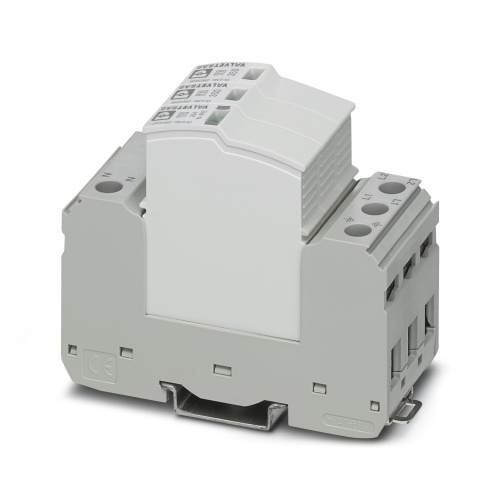

Phoenix Contact 2905338 Type 2 surge arrester VAL-SEC-T2-2S-350-FM
Normally In Stock
VAL-SEC-T2-2S-350-FM Phoenix 2905338 Surge arrester 240/415 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection
Condition: New
Usually ships Same Day or Next Day$543.64
Sale Price
$453.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

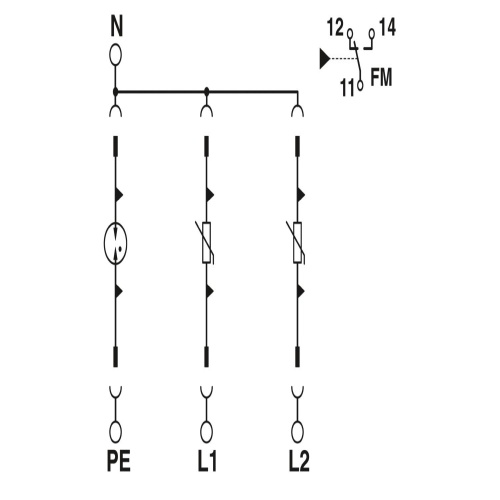

Phoenix Contact 2905338 A plug-in surge arrester designed according to Type 2/Class II standards is suitable for 2-phase power supply systems that have separate live (L) and neutral (N) conductors as well as a protective earth conductor (PE) in a four-conductor setup, which includes L1, L2, N, and PE. This type of system often features remote indication contacts that provide an indication of the arrester's operational status or any potential issues.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
More space in the control cabinet due to the narrow overall width of just 12 mm per position and use without separate backup fuse up to 315 A gG
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Downloads
Phoenix 2905338 CAD data International.dxfPhoenix 2905338 CAD data International.pdfPhoenix 2905338 CAD data International.stpPhoenix 2905338 Flyer English-2.pdfPhoenix 2905338 Flyer English.pdfPhoenix 2905338 Manufacturer's declaration International.pdfPhoenix 2905338 Manufacturers declaration English.pdfPhoenix 2905338 Manufacturers declaration International.pdfPhoenix 2905338 Package Slip International.pdfPhoenix 2905338 Surge Protection English.pdfPhoenix 2905338 Tender Text English.zip
