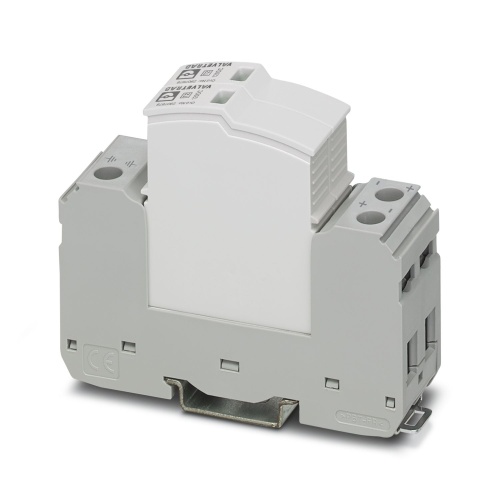

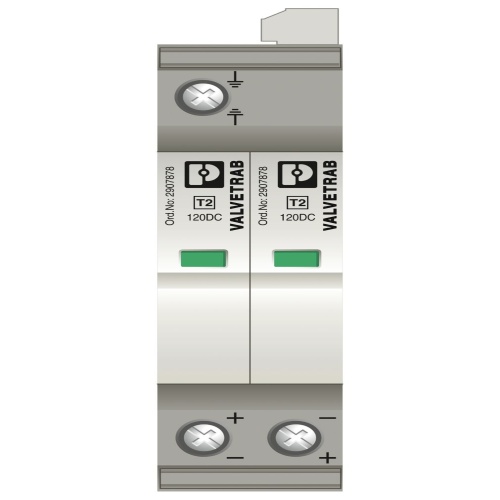

Phoenix Contact 2907874 Type 2 surge arrester VAL-SEC-T2-2+0-120DC-FM
Normally In Stock
Code: 71872
VAL-SEC-T2-2+0-120DC-FM Phoenix 2907874 Surge arrester 100 VDC - 120 VDC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$327.91
Sale Price
$273.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907874 A pluggable surge protective device that meets Type 2/Class II standards is designed specifically for use with DC power sources featuring linear operating characteristics, and it is equipped with a remote indication contact to provide real-time feedback on its status or any potential issues that may arise.
Specifications
Max Discharge Capacity
1000 V DC
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
100 Volt - 120 Volt
Component
Surge Arrester
Features
More space in the control cabinet due to the narrow overall width of just 12 mm per position
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Extremely narrow design, just 12 mm per position
Varistor arrester with a low leakage current
Downloads
Phoenix 2907874 CAD data International.dxfPhoenix 2907874 CAD data International.pdfPhoenix 2907874 CAD data International.stpPhoenix 2907874 Flyer English-2.pdfPhoenix 2907874 Flyer English.pdfPhoenix 2907874 Manufacturers declaration English.pdfPhoenix 2907874 Manufacturers declaration International.pdfPhoenix 2907874 Package Slip International.pdfPhoenix 2907874 Surge Protection English.pdfPhoenix 2907874 Tender Text English.zip
