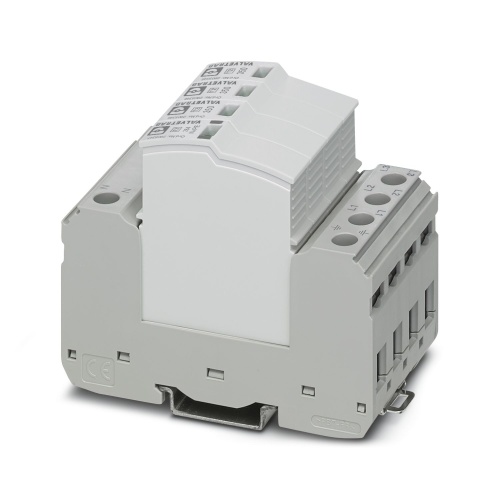

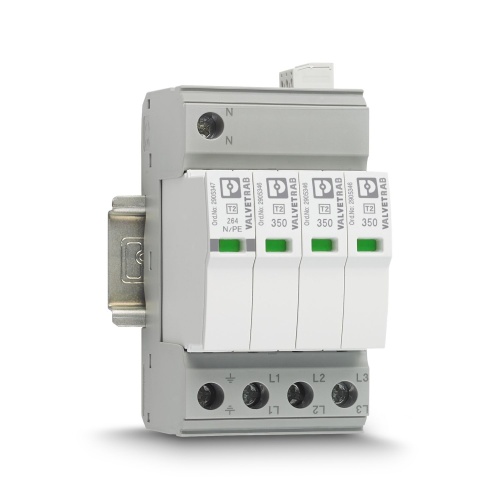

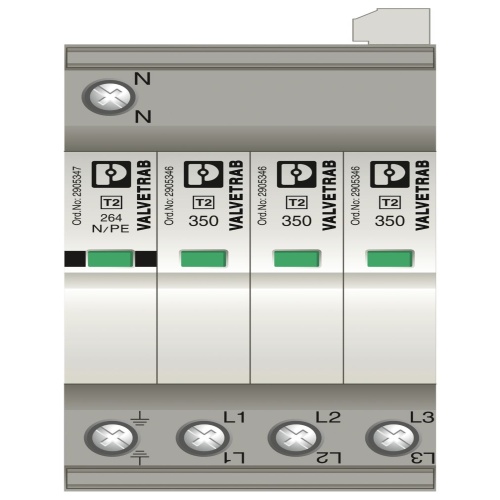

Phoenix Contact 2905340 Type 2 surge arrester VAL-SEC-T2-3S-350-FM
Normally In Stock
Code: 71853
VAL-SEC-T2-3S-350-FM Phoenix 2905340 Surge arrester 240/415 VAC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection
Condition: New
Usually ships Same Day or Next Day$602.95
Sale Price
$502.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

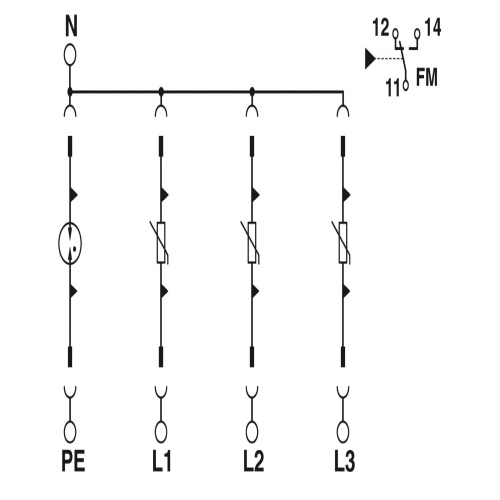

Phoenix Contact 2905340 A plug-in surge arrester suitable for three-phase power supply networks that use a 5-conductor system, typically consisting of L1, L2, L3, N (neutral), and PE (earth), is required to meet Type 2/Class II standards, with the added feature of remote indication contact.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
More space in the control cabinet due to the narrow overall width of just 12 mm per position and use without separate backup fuse up to 315 A gG
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Downloads
Phoenix 2905340 CAD data International.dxfPhoenix 2905340 CAD data International.pdfPhoenix 2905340 CAD data International.stpPhoenix 2905340 Flyer English-2.pdfPhoenix 2905340 Flyer English.pdfPhoenix 2905340 Manufacturers declaration English.pdfPhoenix 2905340 Manufacturers declaration International.pdfPhoenix 2905340 Package Slip International.pdfPhoenix 2905340 Product Information English.pdfPhoenix 2905340 Surge Protection English.pdfPhoenix 2905340 Tender Text English.zip
