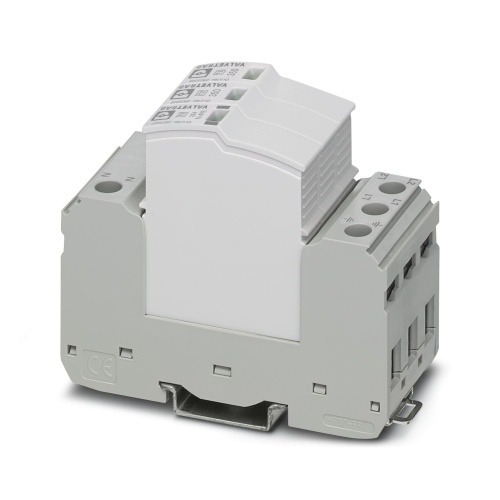

Phoenix Contact 2905343 Type 2 surge arrester VAL-SEC-T2-2S-350
Normally In Stock
Code: 71820
VAL-SEC-T2-2S-350 Phoenix 2905343 Surge arrester 240/415 VAC Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection
Condition: New
Usually ships Same Day or Next Day$504.01
Sale Price
$420.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

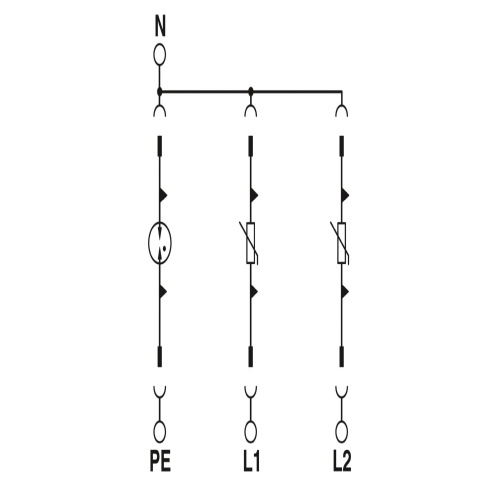

Phoenix Contact 2905343 A plug-in surge arrester designed to meet the Type 2/Class II standard is required for two-phase power supply networks that utilize a separate neutral and earth connection, such as a four-conductor system with phase (L1, L2), neutral (N), and earth (PE) conductors.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
More space in the control cabinet due to the narrow overall width of just 12 mm per position and use without separate backup fuse up to 315 A gG
Easy to maintain due to consistently pluggable protection modules
Excellent level of information provided by mechanical/visual status indicator and remote indication contact
Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
Downloads
Phoenix 2905343 CAD data International.dxfPhoenix 2905343 CAD data International.pdfPhoenix 2905343 CAD data International.stpPhoenix 2905343 Flyer English-2.pdfPhoenix 2905343 Flyer English.pdfPhoenix 2905343 Manufacturers declaration English.pdfPhoenix 2905343 Manufacturers declaration International.pdfPhoenix 2905343 Package Slip International.pdfPhoenix 2905343 Surge Protection English.pdfPhoenix 2905343 Tender Text English.zip
