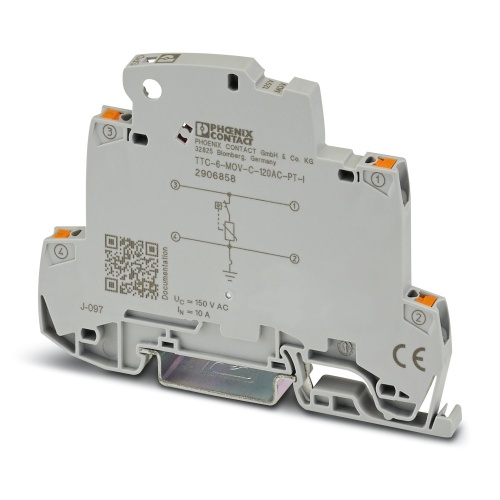

Phoenix Contact 2906858 Surge protection device TTC-6-MOV-C-120AC-PT-I
Normally In Stock
Code: 71783
TTC-6-MOV-C-120AC-PT-I Phoenix 2906858 Surge protection for measurement and control technology 120 VAC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$30.64
Sale Price
$25.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

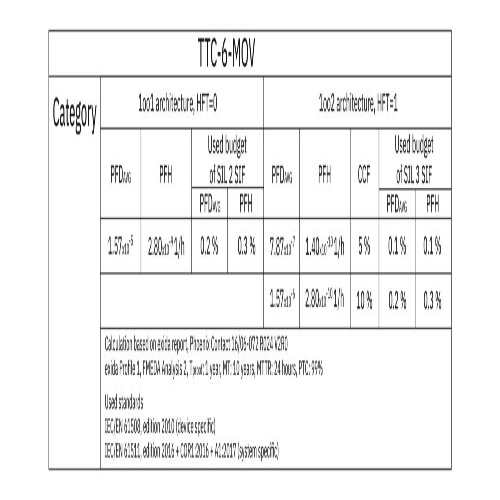

Phoenix Contact 2906858 A medium surge protection device is available that features an integrated status indicator and can be connected to a single signal wire with a grounded reference potential, making it suitable for use in safety-related circuits rated up to SIL 3.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
120 Volt
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
358 Volt
Nominal Discharge Current
40 Ka
Component
Surge Protection Device
Features
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906858 Application Note English.pdfPhoenix 2906858 CAD data International.dxfPhoenix 2906858 CAD data International.pdfPhoenix 2906858 CAD data International.stpPhoenix 2906858 Certification International-2.pdfPhoenix 2906858 Certification International.pdfPhoenix 2906858 Flyer English-2.pdfPhoenix 2906858 Flyer English.pdfPhoenix 2906858 Manufacturers declaration English.pdfPhoenix 2906858 Manufacturers declaration International.pdfPhoenix 2906858 Product Information English.pdfPhoenix 2906858 Surge Protection English.pdfPhoenix 2906858 Tender Text English.zip
