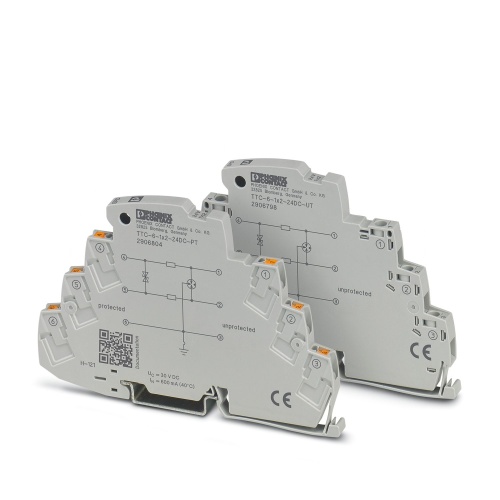

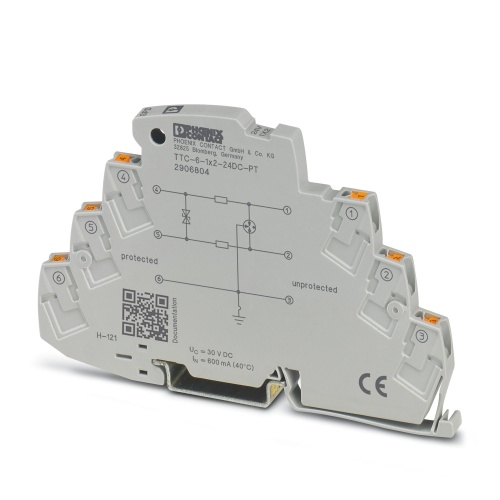

Phoenix Contact 2906804 Surge protection device TTC-6-1X2-24DC-PT
Normally In Stock
Code: 71743
TTC-6-1X2-24DC-PT Phoenix 2906804 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$145.18
Sale Price
$120.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

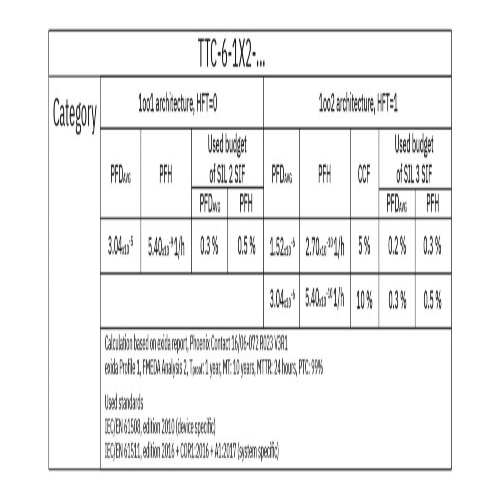

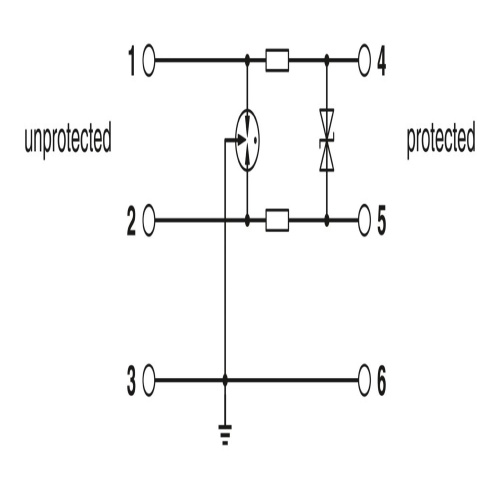

Phoenix Contact 2906804 A surge protection solution is available for 2-wire floating signal circuits with a current loop rating of 0-20 mA, and is compatible with HART technology, making it suitable for use in safety-related circuits rated up to SIL 3.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
260 Amp
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
36 Volt
Component
Surge Protection Device
Features
Quick and tool-free installation of surge protective devices, thanks to Push-in connection technology
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features

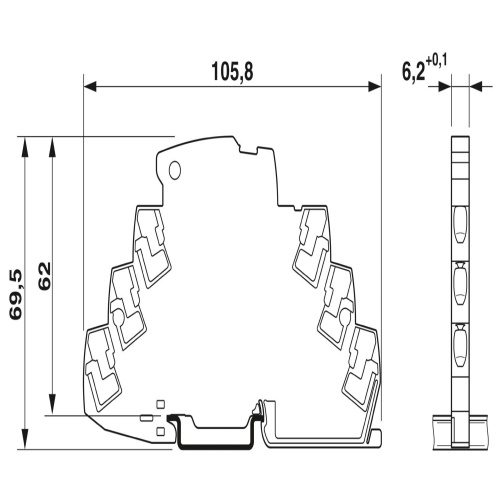

Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906804 Application Note English.pdfPhoenix 2906804 CAD data International.dxfPhoenix 2906804 CAD data International.pdfPhoenix 2906804 CAD data International.stpPhoenix 2906804 Certification International-2.pdfPhoenix 2906804 Certification International.pdfPhoenix 2906804 Flyer English-2.pdfPhoenix 2906804 Flyer English.pdfPhoenix 2906804 Manufacturers declaration English.pdfPhoenix 2906804 Manufacturers declaration International.pdfPhoenix 2906804 Product Information English.pdfPhoenix 2906804 Surge Protection English.pdfPhoenix 2906804 Tender Text English.zip
