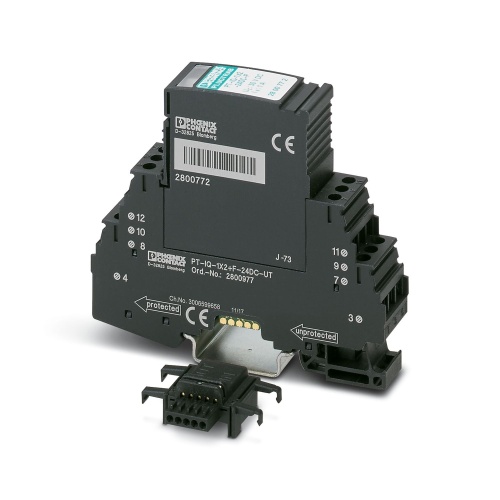

Phoenix Contact 2800977 Surge protection device PT-IQ-1X2+F-24DC-UT
Normally In Stock
Code: 71715
PT-IQ-1X2+F-24DC-UT Phoenix 2800977 Surge protection for measurement and control technology 24 VDC Screw connection,DIN rail NS35 Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$278.20
Sale Price
$231.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

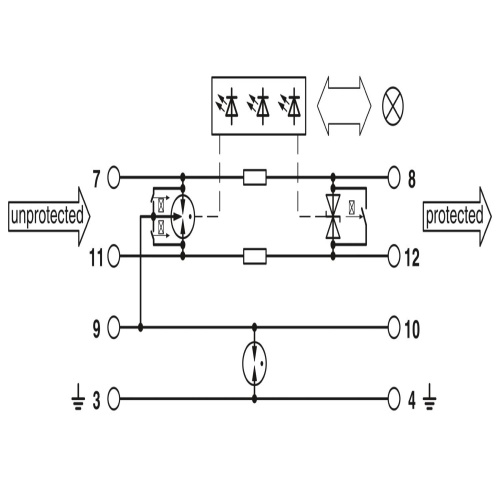

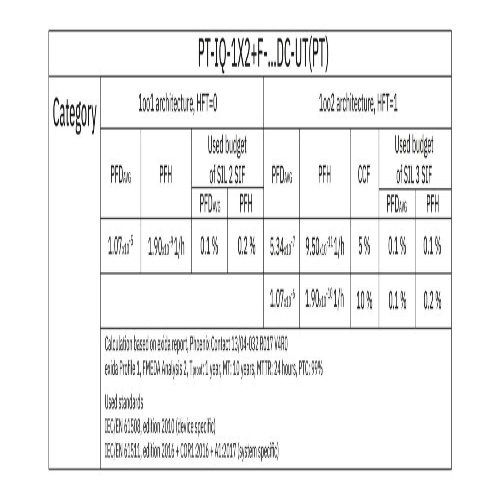

Phoenix Contact 2800977 A surge protection unit consists of a protective plug and base element with an integrated multi-stage status indicator, designed for use in single 2-wire floating signal circuits and utilizes indirect grounding through a gas discharge tube, making it suitable for use in high-risk applications requiring SIL 3 certification.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
PV I - II
Arrester Class according to IEC
PV T1 - T2
Impulse Discharge Current
5 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
PV Arrester
Nominal Discharge Current
15 Ka
Component
Surge Protection Device
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2800977 CAD data International.dxfPhoenix 2800977 CAD data International.pdfPhoenix 2800977 CAD data International.stpPhoenix 2800977 Flyer English-2.pdfPhoenix 2800977 Flyer English.pdfPhoenix 2800977 Manufacturers declaration English.pdfPhoenix 2800977 Manufacturers declaration International.pdfPhoenix 2800977 Package Slip International.pdfPhoenix 2800977 Product Information English.pdfPhoenix 2800977 Software International.zipPhoenix 2800977 Surge Protection English.pdfPhoenix 2800977 Tender Text English.zip
