Code: 71700

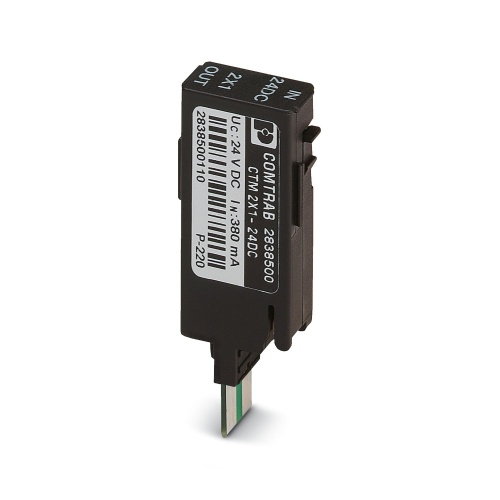

Phoenix Contact 2838500 Surge protection plug CTM 2X1- 24DC
Normally In Stock
CTM 2X1- 24DC Phoenix 2838500 Surge protection for measurement and control technology 24 VDC can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips,COMTRAB plug-in system,Spring contact Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$107.09
Sale Price
$89.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

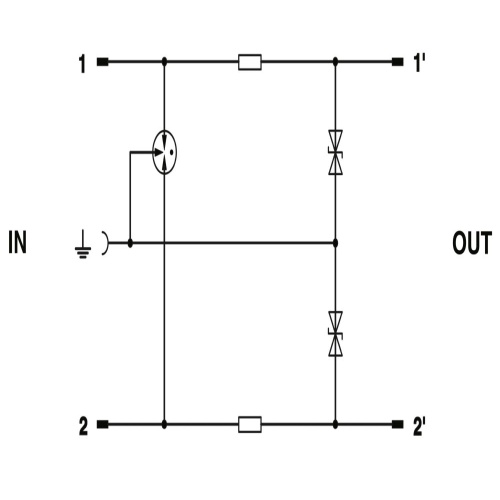

Phoenix Contact 2838500 The LSA-PLUS plug features a built-in protective circuit designed for use in 2-conductor signal circuits that are grounded on one side, and operates at a nominal voltage of 24 volts direct current (DC).
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
690 Amp
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
12.8 Volt
Component
Surge Protection Plug
Features
Flexible fields of application with modular protective plug
Can be used in LSA-PLUS disconnect and control strips or CT-TERMIBLOCK via adapted connection technology
Space-saving due to compact design
Downloads
Phoenix 2838500 CAD data International.dxfPhoenix 2838500 CAD data International.pdfPhoenix 2838500 CAD data International.stpPhoenix 2838500 Flyer English.pdfPhoenix 2838500 Manufacturers declaration International.pdfPhoenix 2838500 Package Slip International.pdfPhoenix 2838500 Product Information English.pdfPhoenix 2838500 Software International.zipPhoenix 2838500 Surge Protection English.pdfPhoenix 2838500 Tender Text English.zip
