Code: 71697

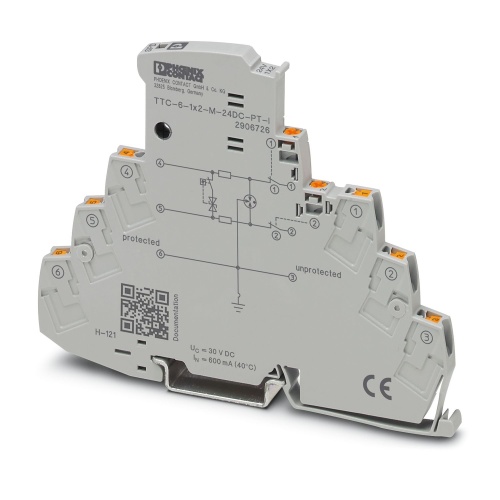

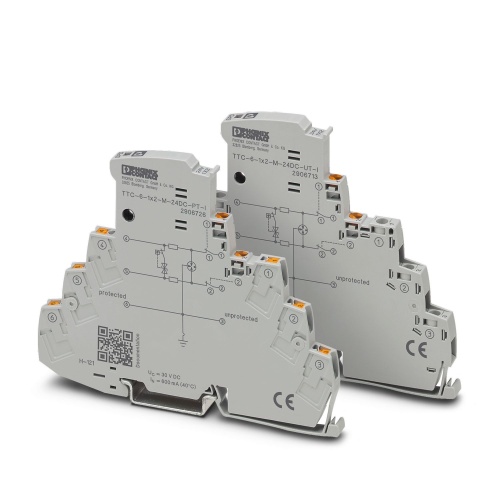

Phoenix Contact 2906726 Surge protection device TTC-6-1X2-M-24DC-PT-I
Normally In Stock
TTC-6-1X2-M-24DC-PT-I Phoenix 2906726 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$153.18
Sale Price
$127.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

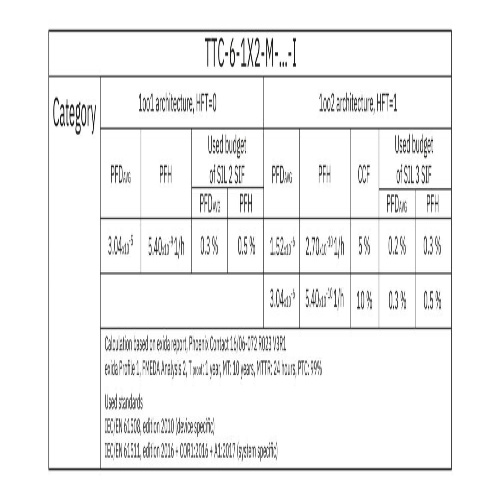

Phoenix Contact 2906726 This product features integrated surge protection with a status indicator and knife disconnection capabilities suitable for 2-wire floating signal circuits, such as those found in 0(4) ... 20 mA current loop applications that require Ex e approval for zone 2 and are compatible with HART technology, making it suitable for use in safety-related circuits up to SIL 3.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C3
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
300 Amp
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
15 Volt
Component
Surge Protection Device
Features
Signal circuits easily interrupted for maintenance work, thanks to vertical knife disconnection
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Downloads
Phoenix 2906726 Application Note English.pdfPhoenix 2906726 CAD data International.dxfPhoenix 2906726 CAD data International.pdfPhoenix 2906726 CAD data International.stpPhoenix 2906726 Certification International-2.pdfPhoenix 2906726 Certification International.pdfPhoenix 2906726 Flyer English-2.pdfPhoenix 2906726 Flyer English.pdfPhoenix 2906726 Manufacturers declaration English.pdfPhoenix 2906726 Manufacturers declaration International.pdfPhoenix 2906726 Product Information English.pdfPhoenix 2906726 Surge Protection English.pdfPhoenix 2906726 Tender Text English.zip
