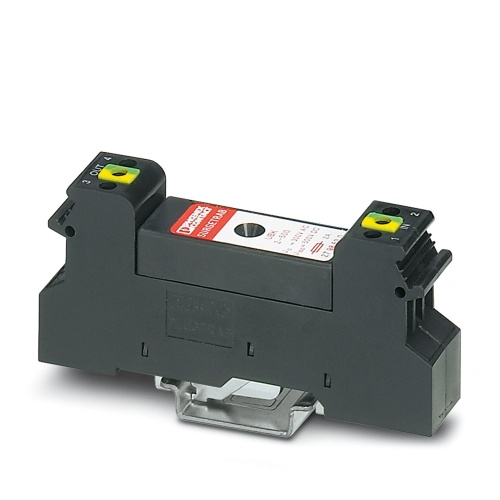

Phoenix Contact 2798530 Surge protection device UBK 2-500
Normally In Stock
Code: 71673
UBK 2-500 Phoenix 2798530 Surge protection for measurement and control technology 500 VAC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$149.89
Sale Price
$124.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2798530 A DIN rail module with built-in surge protection is available for use with two signal wires and features a self-contacting grounding foot, suitable for mounting on NS 32 or NS 35/7.5 rails, with a housing width of 17.5mm and designed to operate at 500V AC.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
PV II
Arrester Class according to IEC
PV T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Replacement Plug
Nominal Discharge Current
15 Ka
Surge Protector Line Voltage
500 Volt
Component
Surge Protection Device
Features
Protection to suit your needs, with a complete range of surge protective devices for all common MCR signals
Versatile use: designs and connection technology adapted to the application
Easy testing with pluggable surge protective devices
Worldwide use in potentially explosive areas with ATEX and IECEx approvals
Surge protection for MCR technology is part of the COMPLETE line system
