Code: 71653

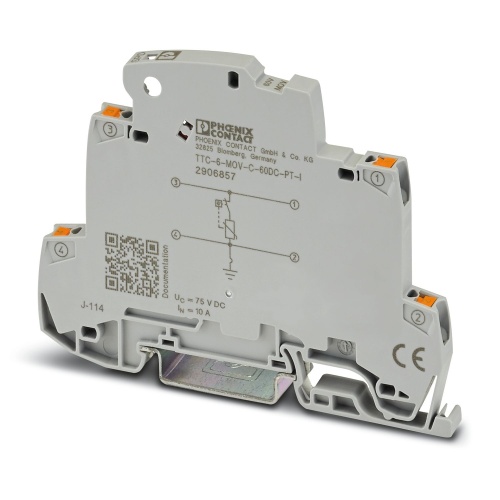

Phoenix Contact 2906857 Surge protection device TTC-6-MOV-C-60DC-PT-I
Normally In Stock
TTC-6-MOV-C-60DC-PT-I Phoenix 2906857 Surge protection for measurement and control technology 60 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$32.39
Sale Price
$26.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

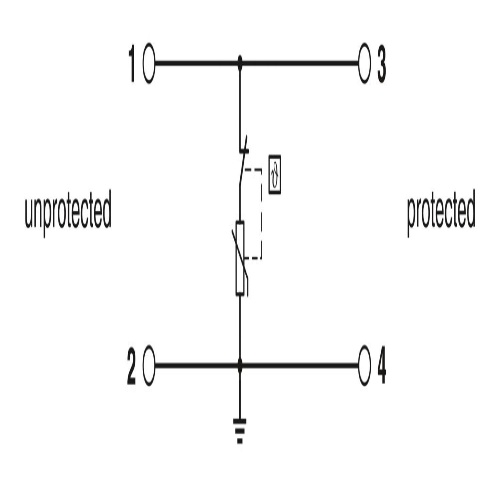

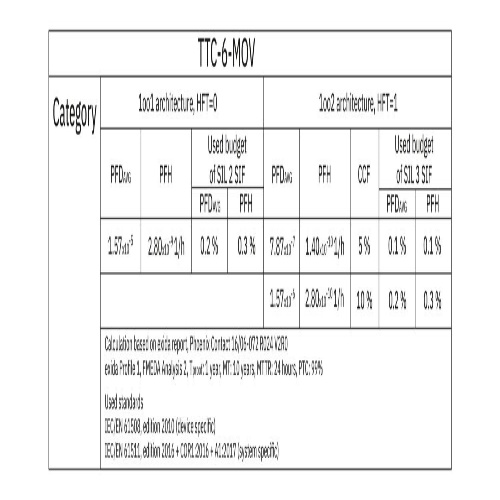

Phoenix Contact 2906857 This device provides medium surge protection on a single signal wire that has a grounded reference potential and also features an integrated status indicator, making it suitable for use in safety-related circuits with a maximum SIL rating of 3.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
40 Volt
Nominal Discharge Current
10 Ka
Surge Protector Line Voltage
60 Volt
Component
Surge Protection Device
Features

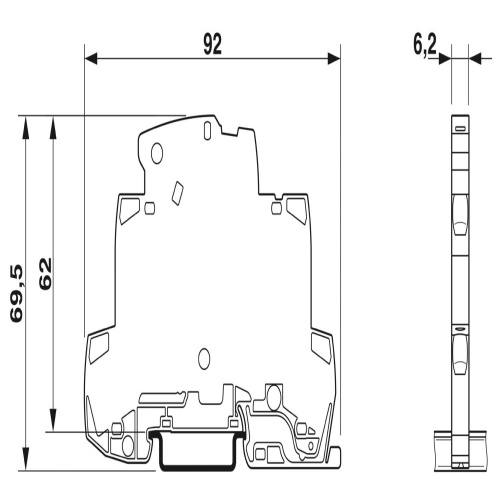

Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Downloads
Phoenix 2906857 Application Note English.pdfPhoenix 2906857 CAD data International.dxfPhoenix 2906857 CAD data International.pdfPhoenix 2906857 CAD data International.stpPhoenix 2906857 Certification International-2.pdfPhoenix 2906857 Certification International.pdfPhoenix 2906857 Flyer English-2.pdfPhoenix 2906857 Flyer English.pdfPhoenix 2906857 Manufacturers declaration English.pdfPhoenix 2906857 Manufacturers declaration International.pdfPhoenix 2906857 Product Information English.pdfPhoenix 2906857 Surge Protection English.pdfPhoenix 2906857 Tender Text English.zip
