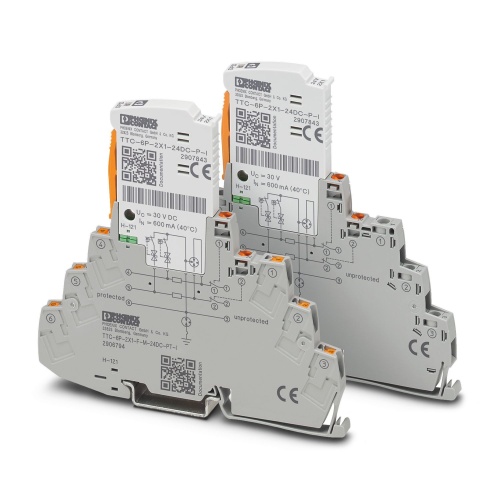

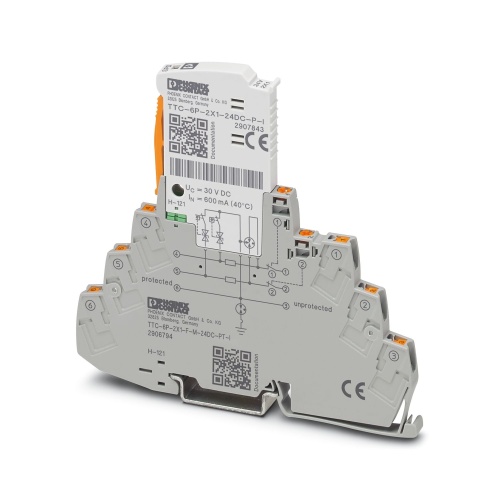

Phoenix Contact 2906794 Surge protection device TTC-6P-2X1-F-M-24DC-PT-I
Normally In Stock
Code: 71643
TTC-6P-2X1-F-M-24DC-PT-I Phoenix 2906794 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$208.98
Sale Price
$174.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

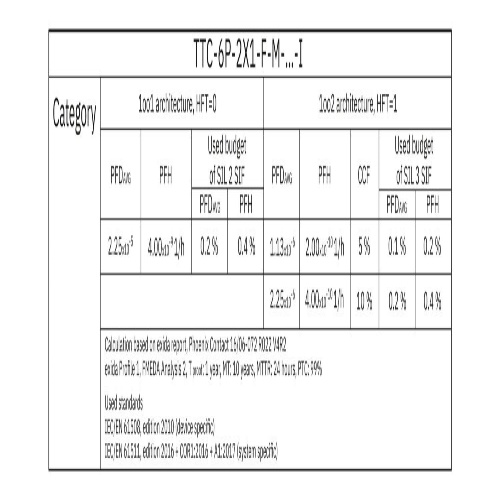

Phoenix Contact 2906794 A surge protection system typically includes a protective plug and base element that provide both protection and a status indicator, often integrated with signal wires, and features an indirect grounding mechanism using a gas discharge tube for added safety. These systems can also be utilized in critical control applications requiring SIL 3 certification, offering reliable protection against electrical surges.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Arrester Class according to IEC
B2
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
± 15 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Device
Features

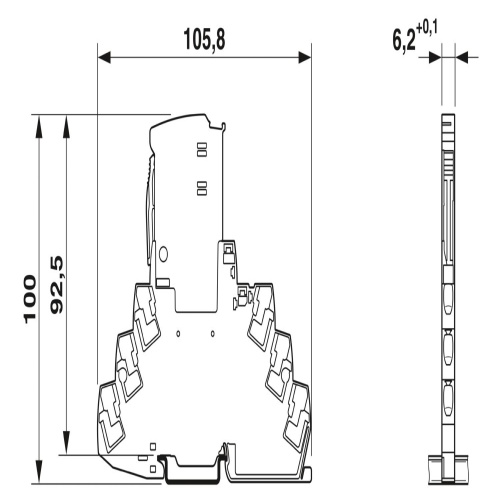

Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906794 Application Note English.pdfPhoenix 2906794 CAD data International.dxfPhoenix 2906794 CAD data International.pdfPhoenix 2906794 CAD data International.stpPhoenix 2906794 Certification International-2.pdfPhoenix 2906794 Certification International.pdfPhoenix 2906794 Flyer English-2.pdfPhoenix 2906794 Flyer English.pdfPhoenix 2906794 Manufacturers declaration English.pdfPhoenix 2906794 Manufacturers declaration International.pdfPhoenix 2906794 Product Information English.pdfPhoenix 2906794 Surge Protection English.pdfPhoenix 2906794 Tender Text English.zip
