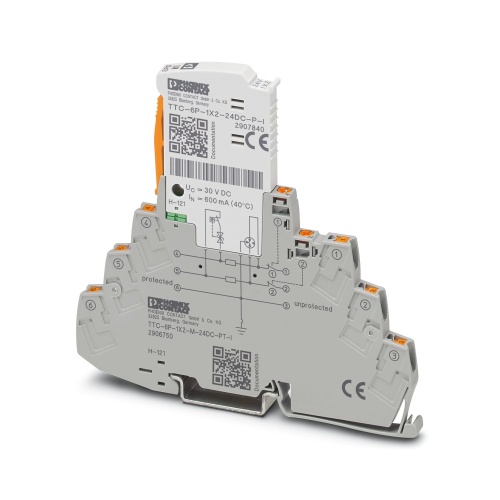

Phoenix Contact 2906750 Surge protection device TTC-6P-1X2-M-24DC-PT-I
Normally In Stock
Code: 71637
TTC-6P-1X2-M-24DC-PT-I Phoenix 2906750 Surge protection for measurement and control technology 24 VDC Push-in connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$202.42
Sale Price
$168.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

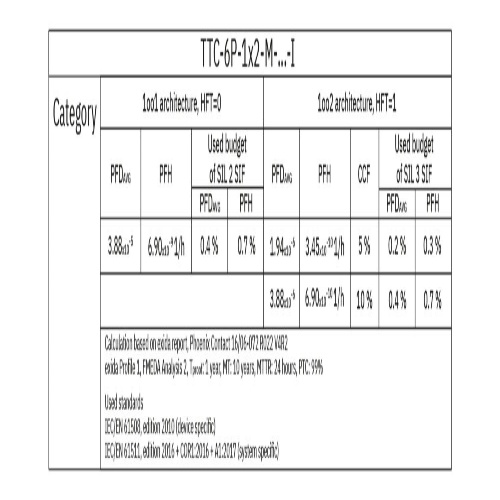

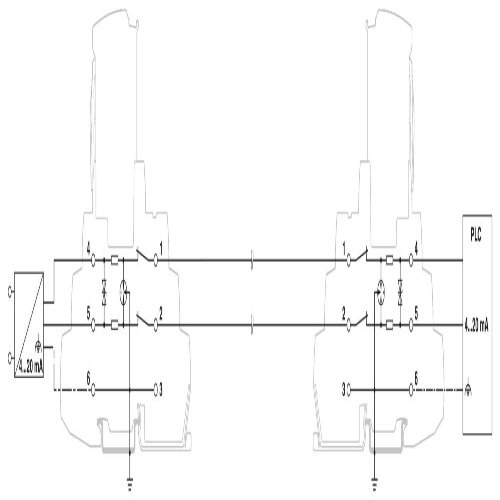

Phoenix Contact 2906750 A surge protection solution comprising a protective plug and base element with an integrated status indicator and disconnect knife is designed for use in 2-wire floating signal circuits such as the 0(4)...20mA current loop, meeting Ex e approval for zone 2 and HART compatibility, suitable for applications requiring SIL 3 reliability.
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Device
Features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2906750 Application Note English.pdfPhoenix 2906750 CAD data International.dxfPhoenix 2906750 CAD data International.pdfPhoenix 2906750 CAD data International.stpPhoenix 2906750 Certification International-2.pdfPhoenix 2906750 Certification International.pdfPhoenix 2906750 Flyer English-2.pdfPhoenix 2906750 Flyer English.pdfPhoenix 2906750 Manufacturers declaration English.pdfPhoenix 2906750 Manufacturers declaration International.pdfPhoenix 2906750 Surge Protection English.pdfPhoenix 2906750 Tender Text English.zip
