Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 71627

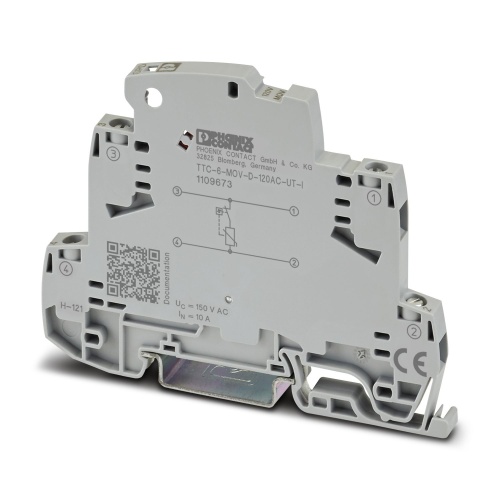

Phoenix Contact 1109673 Surge protection device TTC-6-MOV-D-120AC-UT-I
Normally In Stock
TTC-6-MOV-D-120AC-UT-I Phoenix 1109673 Surge protection for measurement and control technology 120 VAC Screw connection Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$30.64
Sale Price
$25.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1109673 A medium surge protection unit with an integrated status indicator is available for use on a single 2-wire floating signal circuit, and it can be utilized in safety-critical applications rated up to SIL level 3.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
120 Volt
Maximum Continous Voltage
150 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Nominal Discharge Current
2.5 Ka
Component
Surge Protection Device
Features
Space-saving and cost-saving with a narrow overall width of just 6 mm
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Downloads
Phoenix 1109673 CAD data International.dxfPhoenix 1109673 CAD data International.pdfPhoenix 1109673 CAD data International.stpPhoenix 1109673 Flyer English-2.pdfPhoenix 1109673 Flyer English.pdfPhoenix 1109673 Manufacturers declaration International.pdfPhoenix 1109673 Surge Protection English.pdfPhoenix 1109673 Tender Text English.zip
