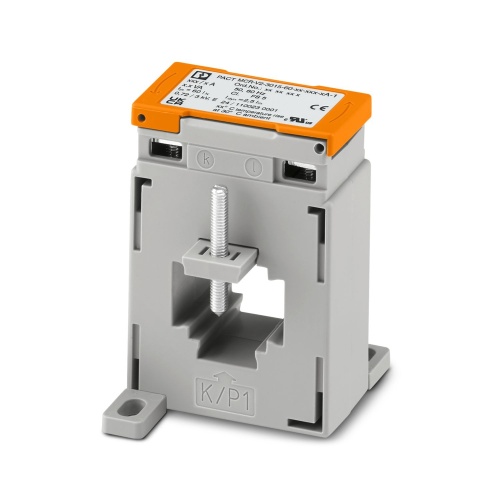

Phoenix Contact 2277093 Current transformer PACT MCR-V2-3015- 60- 400-5A-1
Normally In Stock
Code: 71445
PACT MCR-V2-3015- 60- 400-5A-1 Phoenix 2277093 Current transformer 0 Amp - 400 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$47.89
Sale Price
$39.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2277093 A window-type current transformer with a primary current rating of 400 A AC and a secondary current rating of 5 A AC is designed to meet the requirements for accuracy class 1, indicating high precision, while also having a relatively low power consumption of 10 VA.
Specifications
Monitoring Rated Power
10 VA
Monitoring Circular Conductor Dimensions
28 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 400 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277093 CAD data International.dxfPhoenix 2277093 CAD data International.pdfPhoenix 2277093 CAD data International.stpPhoenix 2277093 Data Sheet English.pdfPhoenix 2277093 E-Learning English.wmvPhoenix 2277093 Manufacturers declaration English.pdfPhoenix 2277093 Manufacturers declaration International.pdfPhoenix 2277093 Package Slip International.pdfPhoenix 2277093 Tender Text English.zip
