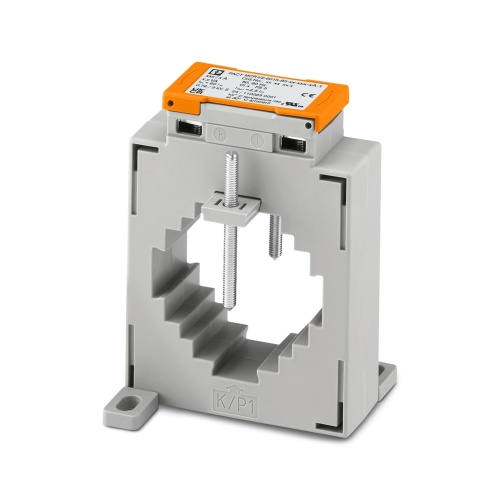

Phoenix Contact 2277967 Current transformer PACT MCR-V2-6015- 85-1250-5A-1
Normally In Stock
Code: 71443
PACT MCR-V2-6015- 85-1250-5A-1 Phoenix 2277967 Current transformer 0 Amp - 1250 Amp Plug-on converters Screw connection Monitoring *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$64.80
Sale Price
$54.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2277967 A window-type current transformer is a device that measures electrical current with high accuracy, featuring an input capacity of 1250 A AC for the primary circuit and 5 A AC for the secondary circuit. It meets the standards of accuracy class 1, indicating its reliability, and has a rated power consumption of 15 VA.
Specifications

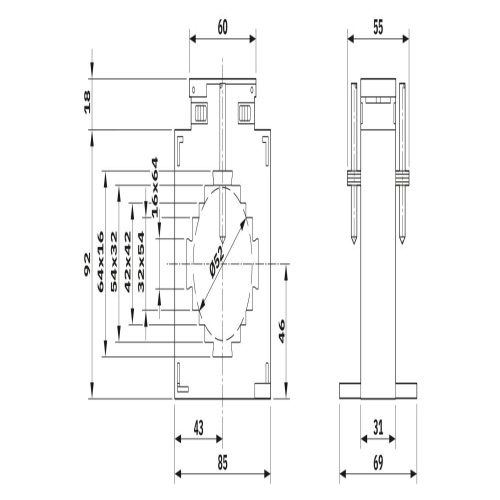

Monitoring Circular Conductor Dimensions
52 mm
Monitoring Rated Power
15 VA
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 1250 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277967 CAD data International.dxfPhoenix 2277967 CAD data International.pdfPhoenix 2277967 CAD data International.stpPhoenix 2277967 E-Learning English.wmvPhoenix 2277967 Manufacturers declaration English.pdfPhoenix 2277967 Manufacturers declaration International.pdfPhoenix 2277967 Package Slip International.pdfPhoenix 2277967 Tender Text English.zip
